AXT420354

Active

Panasonic Electric Works

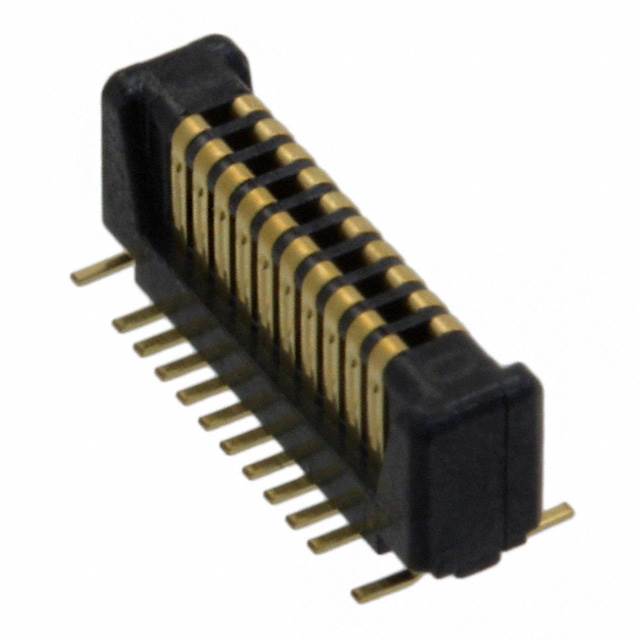

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT420354

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	2.23 mm
Height Above Board	0.088 "
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Connector Type	Mated Stacking Heights	Features	Number of Rows	Mounting Type	Contact Finish
Panasonic Electric Works AXT420164	0.016 in	0.4 mm	0.049 in	1.25 mm	20	Header Center Strip Contacts	1.5 mm 2.5 mm	Solder Retention	2	Surface Mount	Gold
Panasonic Electric Works AXT420324	0.016 in	0.4 mm	0.088 "	2.23 mm	20	Header Center Strip Contacts	3 mm	Solder Retention	2	Surface Mount	Gold
Panasonic Electric Works AXT420224	0.016 in	0.4 mm	0.049 in	1.25 mm	20	Header Center Strip Contacts	2 mm	Solder Retention	2	Surface Mount	Gold
Panasonic Electric Works AXT420354	0.016 in	0.4 mm	0.088 "	2.23 mm	20	Header Center Strip Contacts	3 mm	Board Guide Solder Retention	2	Surface Mount	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 1.66

General part information

20 Position Connector Header, Center Strip Contacts Surface Mount Gold
