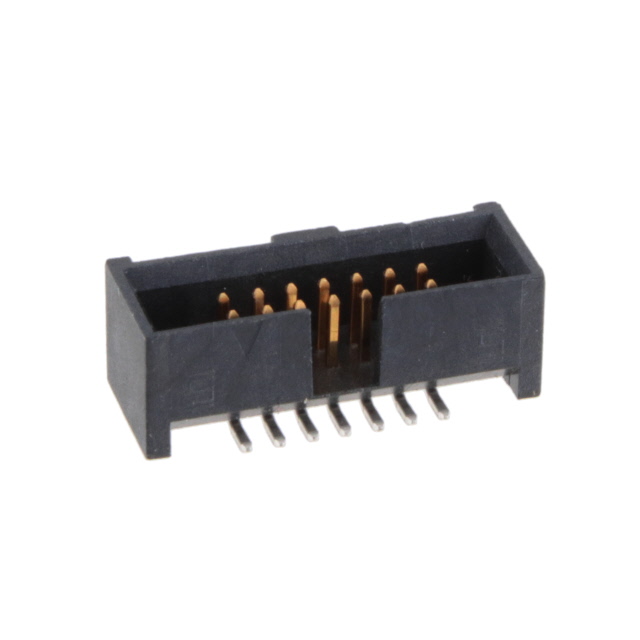

SHF-107-01-S-D-SM

Active

Samtec Inc.

CONN HEADER SMD 14POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SHF-107-01-S-D-SM

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	5.33 mm
Insulation Height	0.21 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

SHF-107 Series

Part	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Features	Number of Rows	Contact Type	Fastening Type	Shrouding	Contact Finish - Post	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Termination	Number of Positions	Style	Connector Type	Contact Material	Number of Positions Loaded	Insulation Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]
Samtec Inc. SHF-107-01-L-D-SM-LC	0.05 in	1.27 mm	5.33 mm	0.21 in	0.05 in	1.27 mm	Board Lock Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	10 çin	0.25 çm	Square	Black	Surface Mount
Samtec Inc. SHF-107-01-F-D-SM-LC	0.05 in	1.27 mm	5.33 mm	0.21 in	0.05 in	1.27 mm	Board Lock Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	3 µin	0.076 µm	Square	Black	Surface Mount
Samtec Inc. SHF-107-01-L-D-RA-TR	0.05 in	1.27 mm	5.6 mm	0.22 in	0.05 in	1.27 mm	Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	10 çin	0.25 çm	Square	Black	Through Hole Right Angle	2.16 mm	0.085 in
Samtec Inc. SHF-107-01-L-D-TH	0.05 in	1.27 mm	5.33 mm	0.21 in	0.05 in	1.27 mm	Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	10 çin	0.25 çm	Square	Black	Through Hole	1.91 mm		0.075 in
Samtec Inc. SHF-107-01-L-D-SM	0.05 in	1.27 mm	5.33 mm	0.21 in	0.05 in	1.27 mm	Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	10 çin	0.25 çm	Square	Black	Surface Mount
Samtec Inc. SHF-107-01-L-D-TH-TR	0.05 in	1.27 mm	5.33 mm	0.21 in	0.05 in	1.27 mm	Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	10 çin	0.25 çm	Square	Black	Through Hole	1.91 mm		0.075 in
Samtec Inc. SHF-107-01-S-D-SM	0.05 in	1.27 mm	5.33 mm	0.21 in	0.05 in	1.27 mm	Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C			Square	Black	Surface Mount
Samtec Inc. SHF-107-01-L-D-TH-LC	0.05 in	1.27 mm	5.33 mm	0.21 in	0.05 in	1.27 mm	Board Lock Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	10 çin	0.25 çm	Square	Black	Through Hole	1.91 mm		0.075 in
Samtec Inc. SHF-107-01-L-D-RA	0.05 in	1.27 mm	5.6 mm	0.22 in	0.05 in	1.27 mm	Keying Slot	2	Male Pin	Push-Pull	Shrouded - 4 Wall	Tin	UL94 V-0	3.05 mm	0.12 in	Gold	Solder	14	Board to Cable/Wire	Header	Phosphor Bronze	All	Liquid Crystal Polymer (LCP)	3 A	-55 °C	125 °C	10 çin	0.25 çm	Square	Black	Through Hole Right Angle	2.16 mm	0.085 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.47

Description

General part information

SHF-107 Series

Connector Header Surface Mount 14 position 0.050" (1.27mm)

Documents

Technical documentation and resources

No documents available
