1898389

Active

Phoenix Contact

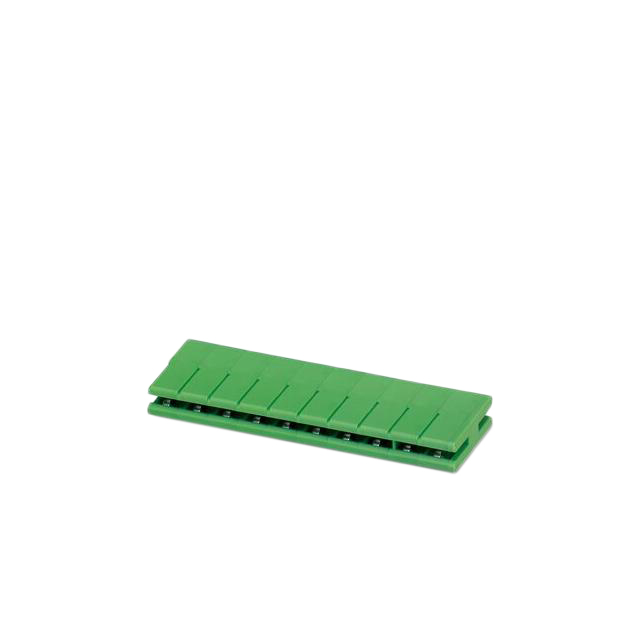

TERM BLOCK PCB

Search across all available documentation for this part.

Active

Phoenix Contact

TERM BLOCK PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1898389	ZEC 1,5 Series

Accessory Type	-	Connector
Convert From (Adapter End)	Card Edge Connector	Card Edge Connector, Card Edge Connector, 9 pos, Card Edge Connector, 11 pos, Card Edge Connector, 4 pos
Convert From (Adapter End)	3 pos	3 - 10 Pos
Convert To (Adapter End)	Card Edge Connector, 3 Pos	Card Edge Connector, Card Edge Connector, 3 Pos, Card Edge Connector, 8 Pos
Convert To (Adapter End)	-	2 - 11 Pos
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)

TERM BLOCK PCB

Part	Mounting Type	Convert From (Adapter End)	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Accessory Type
Phoenix Contact 1898402	Free Hanging (In-Line)	5 Pos	Card Edge Connector	Card Edge Connector	5 Pos
Phoenix Contact 1898279	Free Hanging (In-Line)	3 pos	Card Edge Connector	Card Edge Connector, 3 Pos
Phoenix Contact 1898389	Free Hanging (In-Line)	3 pos	Card Edge Connector	Card Edge Connector, 3 Pos
Phoenix Contact 1898457	Free Hanging (In-Line)	10 Pos	Card Edge Connector
Phoenix Contact 1793260						Connector
Phoenix Contact 1898444	Free Hanging (In-Line)		Card Edge Connector, 9 pos	Card Edge Connector	9
Phoenix Contact 1898460	Free Hanging (In-Line)		Card Edge Connector, 11 pos	Card Edge Connector	11 Pos
Phoenix Contact 1898376	Free Hanging (In-Line)			Card Edge Connector	2 Rows
Phoenix Contact 1898350	Free Hanging (In-Line)		Card Edge Connector, 11 pos	Card Edge Connector	11 Pos
Phoenix Contact 1898266	Free Hanging (In-Line)			Card Edge Connector	2 Rows

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 6.17

General part information

Adapter Card Edge Connector, 3 pos To Card Edge Connector, 3 Pos

Technical documentation and resources
