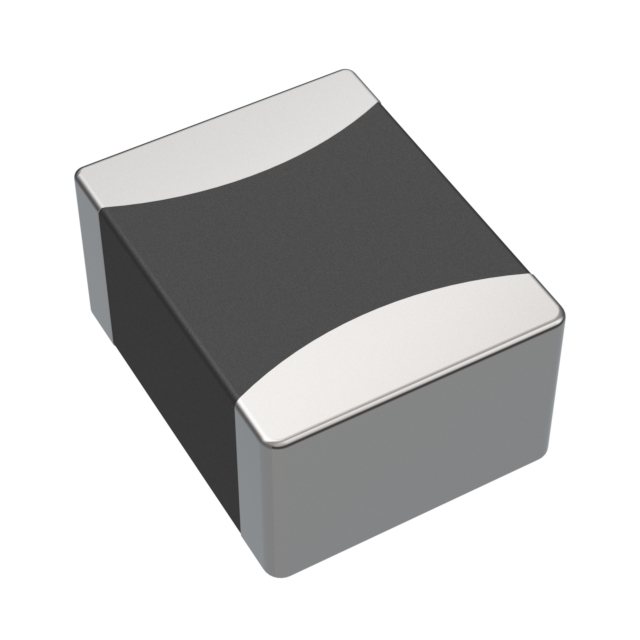

MLV1210E33503T

Active

Vishay Beyschlag/Draloric/BC Components

VARISTOR 250A 1210

Search across all available documentation for this part.

Active

Vishay Beyschlag/Draloric/BC Components

VARISTOR 250A 1210

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR 400A 1210

Part	Maximum DC Volts [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Surge	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Number of Circuits	Package / Case	Package / Case	Capacitance @ Frequency	Energy	Mounting Type	Varistor Voltage (Max) [Max]
Vishay Beyschlag/Draloric/BC Components MLV1210E31403T	18 V	85 C	-55 C	400 A	14 V	21.6 V	1	1210	3225 Metric	2000 pF	1.5 J	Surface Mount, MLCV	26 V
Vishay Beyschlag/Draloric/BC Components MLV1210E30403T	5.6 V	85 C	-55 C	250 A	4 V	7 V	1	1210	3225 Metric	5000 pF	0.4 J	Surface Mount, MLCV	10 V
Vishay Beyschlag/Draloric/BC Components MLV1210E33503T	45 V	85 C	-55 C	250 A	35 V	50.4 V	1	1210	3225 Metric		2.2 J	Surface Mount, MLCV	61.6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.90
	Digi-Reel®	1	$ 0.90
	Tape & Reel (TR)	2000	$ 0.39

General part information

250 A Varistor 1 Circuit Surface Mount, MLCV 1210 (3225 Metric)
