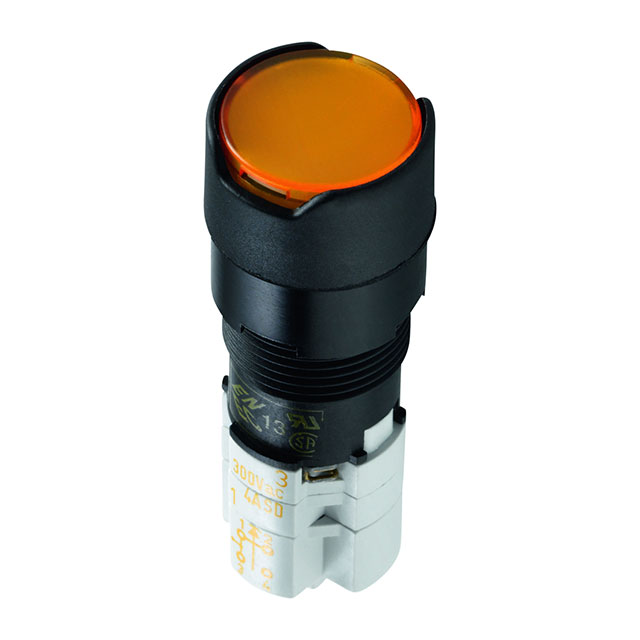

1.15108.4810000

Obsolete

RAFI USA

SWITCH PUSHBUTTON DPST 4A 250V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH PUSHBUTTON DPST 4A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	1.15108.4810000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Current Rating (Amps)	4 A, 200 mA
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	230 V

Part	Circuit	Current Rating (Amps)	Type	Mounting Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Marking	Switch Function	Ingress Protection	Actuator Type	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Voltage Rating - DC
RAFI USA 1.15108.9820000	4PST-2NO/2NC	4 A 200 mA	Illuminated Standard	Panel Mount Front	Solder Lug	70 °C	-25 °C	No Marking	Off-On On-Off	IP65 - Dust Tight Water Resistant	Button Flush Round	16.2 mm	250 V	230 V
RAFI USA 1.15108.2810000	DPST-NO/NC	4 A 200 mA	Illuminated Standard	Panel Mount Front	Solder Lug	70 °C	-25 °C	No Marking	Off-Mom On-Mom	IP65 - Dust Tight Water Resistant	Button Square	16.2 mm	250 V	230 V
RAFI USA 1.15108.9810000	DPST-NO/NC	4 A 200 mA	Illuminated Standard	Panel Mount Front	Solder Lug	70 °C	-25 °C	No Marking	Off-On On-Off	IP65 - Dust Tight Water Resistant	Button Flush Round	16.2 mm	250 V	230 V
RAFI USA 1.15108.1530000
RAFI USA 1.15108.4810000	DPST-NO/NC	4 A 200 mA	Illuminated Standard	Panel Mount Front	Solder Lug	70 °C	-25 °C	No Marking	Off-Mom On-Mom	IP65 - Dust Tight Water Resistant	Button Flush Round	16.2 mm	250 V	230 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
