8458MN 0081000

Active

Belden Inc.

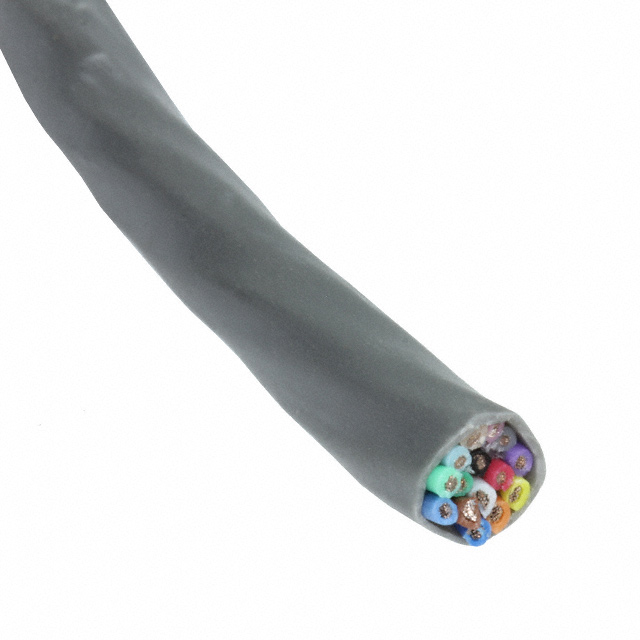

CABLE 15COND 22AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 15COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	8458MN 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	0.267 in
Jacket (Insulation) Diameter [diameter]	6.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Jacket Color	Number of Conductors	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand	Ratings	Conductor Insulation	Conductor Material	Usage	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length
Belden Inc. 8458MN 0081000	Multi-Conductor	Gray	15	Poly-Vinyl Chloride (PVC)	22 AWG	19 Strands	34 AWG	UL Style 2937	Polypropylene (PP)	Copper Tinned	Audio Control Instrumentation	300 V	0.406 mm	0.016 in	0.267 in	6.78 mm	-20 C	80 C	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.00

General part information

15 Conductor Multi-Conductor Cable Gray 22 AWG 1000.0' (304.8m)
