423491-2-04S

Active

Grayhill Inc.

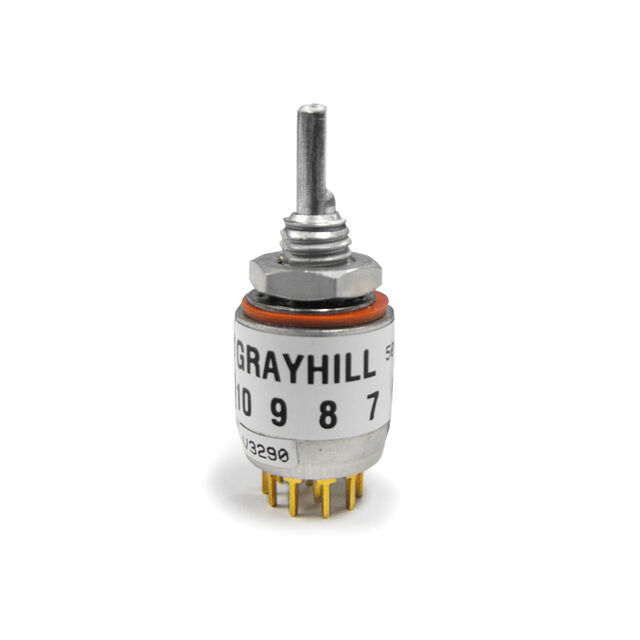

SWITCH ROTARY 4POS 1A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 4POS 1A 115V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH ROTARY 4POS 1A 115V

Part	Termination Style	Contact Material	Number of Poles per Deck	Voltage Rating - DC	Number of Positions	Number of Decks [custom]	Depth Behind Panel [z]	Voltage Rating - AC	Angle of Throw	Actuator Length [x]	Contact Timing	Circuit per Deck	Actuator Type [diameter]	Actuator Type	Index Stops
Grayhill Inc. 423491-2-04N	Solder Lug	Silver Alloy	2	28 V	4	1	26.04 mm	115 V	36 °	11.1 mm	Non-Shorting	DP4T	6.35 mm	Flatted	Fixed
Grayhill Inc. 423491-2-04S	Solder Lug	Silver Alloy	2	28 V	4	1	26.04 mm	115 V	36 °	11.1 mm	Shorting	DP4T	6.35 mm	Flatted	Fixed
Grayhill Inc. 423491-2-03N	Solder Lug	Silver Alloy	2	28 V		1	26.04 mm	115 V	36 °	11.1 mm	Non-Shorting	DP3T	6.35 mm	Flatted	Fixed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 4 Position DP4T 1A (AC/DC) 115 VAC Panel Mount
