3ATL680

Obsolete

MEC Switches

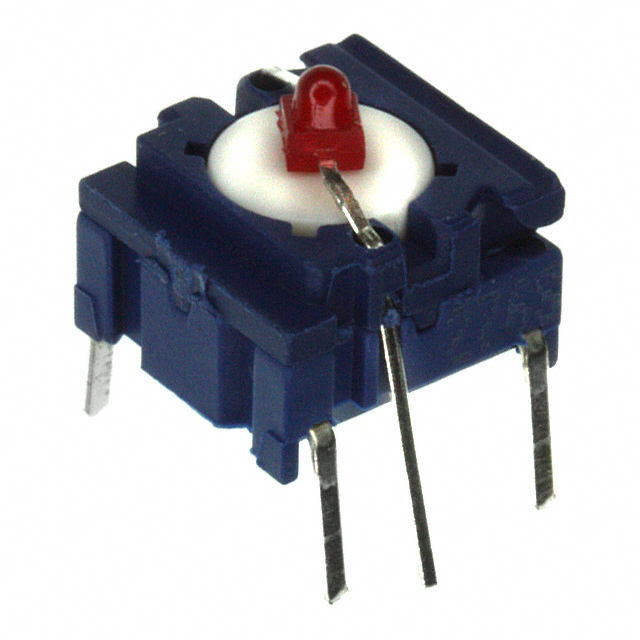

SWITCH TACTILE SPST-NO 0.05A 24V

Search across all available documentation for this part.

Obsolete

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3ATL680	3ATL6 Series

Actuator Height off PCB, Vertical [z]	6.4 mm	6.4 mm
Actuator Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Plunger for Cap	Plunger for Cap
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Sealed - Flux Protection	Sealed - Flux Protection
Illumination	Illuminated	Illuminated, Non-Illuminated
Illumination Type, Color	Red, LED	Red, LED, Green, Yellow
Illumination Voltage (Nominal)	2 VDC	2 - 2.1 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles	10000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	300 gf	300 gf
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	10.1 mm	10.1 mm
Outline [y]	10.1 mm	10.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	1 mm	1 mm
Termination Style	PC Pin	PC Pin

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Circuit	Actuator Material	Mounting Type	Actuator Height off PCB, Vertical [z]	Operating Temperature [Min]	Operating Temperature [Max]	Outline [x]	Outline [y]	Actuator Orientation	Illumination	Termination Style	Switch Travel	Mechanical Life	Illumination Voltage (Nominal)	Switch Function	Operating Force	Illumination Type, Color	Ingress Protection	Actuator Type	Contact Rating @ Voltage	Features
MEC Switches 3ATL680	SPST-NO	Polybutylene Terephthalate (PBT)	Through Hole	6.4 mm	-40 °C	115 °C	10.1 mm	10.1 mm	Top Actuated	Illuminated	PC Pin	1 mm	10000000 Cycles	2 VDC	Off-Mom	300 gf	LED, Red	IP67 - Dust Tight, Waterproof	Plunger for Cap	0.05 A, 24 VDC	Sealed - Flux Protection
MEC Switches 3ATL620	SPST-NO	Polybutylene Terephthalate (PBT)	Through Hole	6.4 mm	-40 °C	115 °C	10.1 mm	10.1 mm	Top Actuated	Illuminated	PC Pin	1 mm	10000000 Cycles	2.1 VDC	Off-Mom	300 gf	Green, LED	IP67 - Dust Tight, Waterproof	Plunger for Cap	0.05 A, 24 VDC	Sealed - Flux Protection
MEC Switches 3ATL6Q	SPST-NO	Polybutylene Terephthalate (PBT)	Through Hole	6.4 mm	-40 °C	115 °C	10.1 mm	10.1 mm	Top Actuated	Non-Illuminated	PC Pin	1 mm	10000000 Cycles		Off-Mom	300 gf		IP67 - Dust Tight, Waterproof	Plunger for Cap	0.05 A, 24 VDC	Sealed - Flux Protection
MEC Switches 3ATL640	SPST-NO	Polybutylene Terephthalate (PBT)	Through Hole	6.4 mm	-40 °C	115 °C	10.1 mm	10.1 mm	Top Actuated	Illuminated	PC Pin	1 mm	10000000 Cycles	2.1 VDC	Off-Mom	300 gf	LED, Yellow	IP67 - Dust Tight, Waterproof	Plunger for Cap	0.05 A, 24 VDC	Sealed - Flux Protection

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
