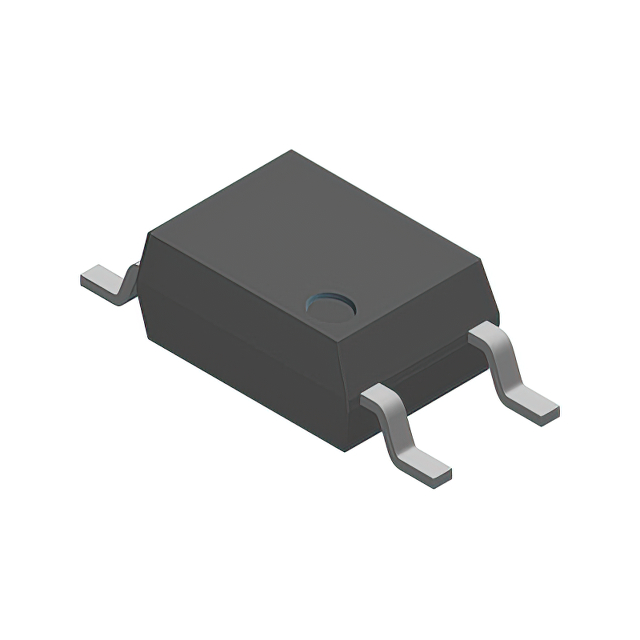

VOMA618A-X001T

Active

Vishay Semiconductor Opto Division

OPTOCOUPLER-PHOTO-TRANSISTOR DET

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

OPTOCOUPLER-PHOTO-TRANSISTOR DET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VOMA618A-X001T	VOMA618 Series

Current - DC Forward (If) (Max) [Max]	20 mA	20 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Max)	600 %	125 - 600 %
Current Transfer Ratio (Min) [Min]	50 %	50 - 160 %
Input Type	DC	DC
Mounting Type	Surface Mount	Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	4-SMD, Gull Wing	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	1.7 µs	1.7 µs
Rise / Fall Time (Typ) [custom]	1.8 µs	1.8 µs
Supplier Device Package	4-SOP	4-SOP
Turn On / Turn Off Time (Typ)	6.8 µs, 2.3 µs	2.3 - 6.8 µs
Vce Saturation (Max) [Max]	400 mV	400 mV
Voltage - Forward (Vf) (Typ)	1.28 V	1.28 V
Voltage - Isolation	3750 Vrms	3750 Vrms

OPTOCOUPLER-PHOTO-TRANSISTOR DET

Part	Output Type	Turn On / Turn Off Time (Typ)	Current Transfer Ratio (Min) [Min]	Vce Saturation (Max) [Max]	Supplier Device Package	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Max)	Voltage - Forward (Vf) (Typ)	Number of Channels	Mounting Type	Current - DC Forward (If) (Max) [Max]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Isolation
Vishay Semiconductor Opto Division VOMA618A-4X001T	1.81 mOhm	2.3 µs, 6.8 µs	160 %	400 mV	4-SOP	50 mA	1.7 µs	1.8 µs	320 %	1.28 V	1	Surface Mount	20 mA	DC	-40 °C	110 °C	4-SMD, Gull Wing	3750 Vrms
Vishay Semiconductor Opto Division VOMA618A-X001T	1.81 mOhm	2.3 µs, 6.8 µs	50 %	400 mV	4-SOP	50 mA	1.7 µs	1.8 µs	600 %	1.28 V	1	Surface Mount	20 mA	DC	-40 °C	110 °C	4-SMD, Gull Wing	3750 Vrms
Vishay Semiconductor Opto Division VOMA618A-2X001T	1.81 mOhm	2.3 µs, 6.8 µs	63 %	400 mV	4-SOP	50 mA	1.7 µs	1.8 µs	125 %	1.28 V	1	Surface Mount	20 mA	DC	-40 °C	110 °C	4-SMD, Gull Wing	3750 Vrms
Vishay Semiconductor Opto Division VOMA618A-3X001T	1.81 mOhm	2.3 µs, 6.8 µs	100 %	400 mV	4-SOP	50 mA	1.7 µs	1.8 µs	200 %	1.28 V	1	Surface Mount	20 mA	DC	-40 °C	110 °C	4-SMD, Gull Wing	3750 Vrms
Vishay Semiconductor Opto Division VOMA618A-8X001T	1.81 mOhm	2.3 µs, 6.8 µs	130 %	400 mV	4-SOP	50 mA	1.7 µs	1.8 µs	260 %	1.28 V	1	Surface Mount	20 mA	DC	-40 °C	110 °C	4-SMD, Gull Wing	3750 Vrms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
