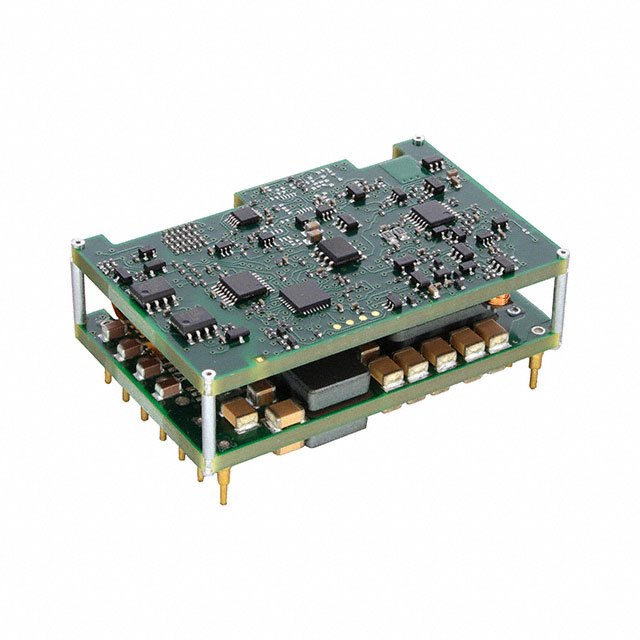

PIM4610PDA

Active

Flex Power Modules

DC DC CONVERTER 3.3V 66W

Search across all available documentation for this part.

Active

Flex Power Modules

DC DC CONVERTER 3.3V 66W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3.3V 66W

Part	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Standard Number	Approval Agency	Mounting Type	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Supplier Device Package	Features	Type	Package / Case	Applications	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs
Flex Power Modules PIM4610PDA	3.3 V	1.45 in	36.8 mm	2.28 in	20.8 mm	57.9 mm	0.82 in	62368-1	CB, CSA, IEC, TUV, UL	Through Hole	2000 V	-40 °C	105 C	75 V	Quarter Brick	PMBus™	Isolated Module, Digital	Quarter Brick	ITE (Commercial)	20 A	98.8 %	36 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 103.06

General part information

Isolated Module, Digital DC DC Converter 1 Output 3.3V 20A 36V - 75V Input
