7891A Z4B1000

Active

Belden Inc.

2 #26FHDPE FSPR PVC FS

Search across all available documentation for this part.

Active

Belden Inc.

2 #26FHDPE FSPR PVC FS

Technical Specifications

Parameters and characteristics for this part

Specification	7891A Z4B1000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter	0.343 in
Jacket (Insulation) Diameter	8.71 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Violet
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Usage	Audio
Wire Gauge	26 AWG

Part	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Conductor Strand	Shield Material	Cable Type	Features	Shield Coverage	Jacket Color	Conductor Insulation	Shield Type	Length	Length	Usage	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness
Belden Inc. 7891A Z4B1000	26 AWG	-30 ░C	80 C	Copper Tinned	0.343 in	8.71 mm	7 Strands 34 AWG	Aluminum Polyester	Multi-Pair	Drain Wire Rip Cord	100 %	Violet	Foam Polyethylene (FPE)	Foil	1000 ft	304.8 m	Audio	4	Poly-Vinyl Chloride (PVC)	0.864 mm	0.034 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

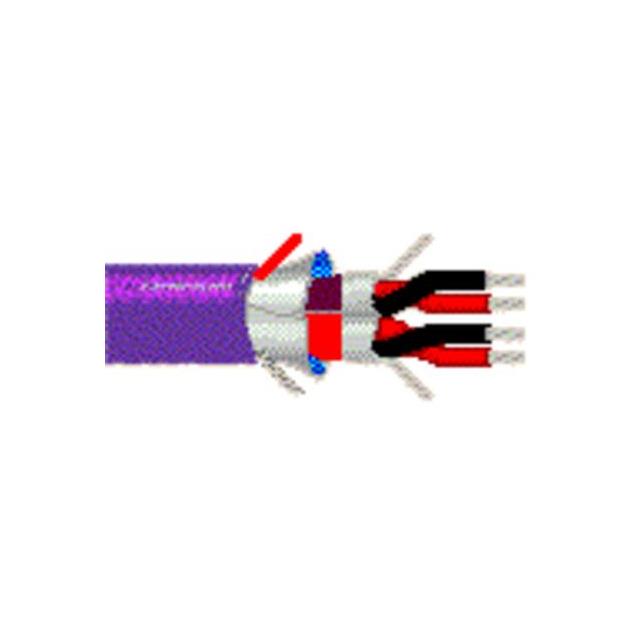

4 (2 Pair) Conductor Multi-Pair Cable Violet 26 AWG Foil 1000.0' (304.8m)
