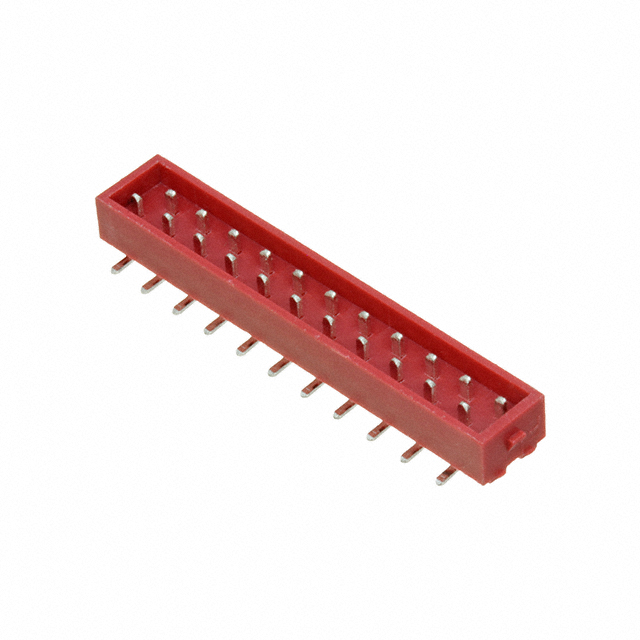

3522-22-0101-99

Active

CnC Tech, LLC

CONN HEADER SMD 22POS 2.54MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER SMD 22POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	3522-22-0101-99

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Height	3.7 mm
Insulation Height	0.146 "
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 VAC

Part	Contact Finish - Post	Contact Shape	Number of Rows	Contact Type	Insulation Material	Voltage Rating	Connector Type	Number of Positions	Mounting Type	Material Flammability Rating	Termination	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions Loaded	Fastening Type	Shrouding
CnC Tech, LLC 3522-22-0101-99	Tin	Rectangular	2	Male Pin	Nylon 9T Polyamide (PA9T)	500 VAC	Header	22 positions	Surface Mount	UL94 V-0	Solder	0.1 in	2.54 mm	3.7 mm	0.146 "	Board to Board Cable	-40 °C	105 ░C	Brass	All	Locking Ramp	Shrouded - 4 Wall
CnC Tech, LLC 3522-22-0100-99	Tin	Rectangular	2	Male Pin	Nylon 9T Polyamide (PA9T)	500 VAC	Header	22 positions	Through Hole	UL94 V-0	Kinked Pin Solder	0.1 in	2.54 mm	3.7 mm	0.146 "	Board to Board Cable	-40 °C	105 ░C	Brass	All	Locking Ramp	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 22 position 0.100" (2.54mm)
