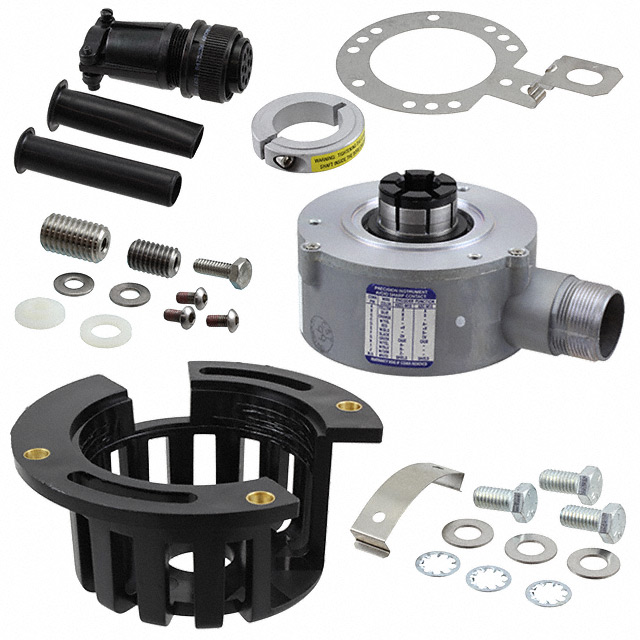

01102-005

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 1024PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 1024PPR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROTARY ENCODER OPTICAL 1024PPR

Technical documentation and resources

No documents available

Specification	01102-005	01102 Series

	-	-
Actuator Type	Hole for Shaft	Hole for Shaft
Built in Switch	False	False
Detent	False	False
Encoder Type	Optical	Optical
Mounting Type	Chassis Mount, Motors	Chassis Mount, Motors
Orientation	User Selectable	User Selectable
Output Type	Quadrature with Index (Incremental)	Quadrature with Index (Incremental)
Pulses per Revolution	1024	1024 - 2000 pulses per revolution
Rotational Life (Cycles Min) [Min]	7.5B	7.5B
Termination Style	Connector	Connector
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	5 V	5 V

Part	Actuator Type	Output Type	Rotational Life (Cycles Min) [Min]	Mounting Type	Termination Style	Orientation	Pulses per Revolution	Encoder Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Sensata-BEI Sensors 01102-165
Sensata-BEI Sensors 01102-022	Hole for Shaft	Quadrature with Index (Incremental)	7.5B	Chassis Mount, Motors	Connector	User Selectable	2000 pulses per revolution	Optical	5 V	28 V
Sensata-BEI Sensors 01102-005	Hole for Shaft	Quadrature with Index (Incremental)	7.5B	Chassis Mount, Motors	Connector	User Selectable	1024	Optical	5 V	28 V
