TSM9W-5.2-260-TR

Active

E-Switch

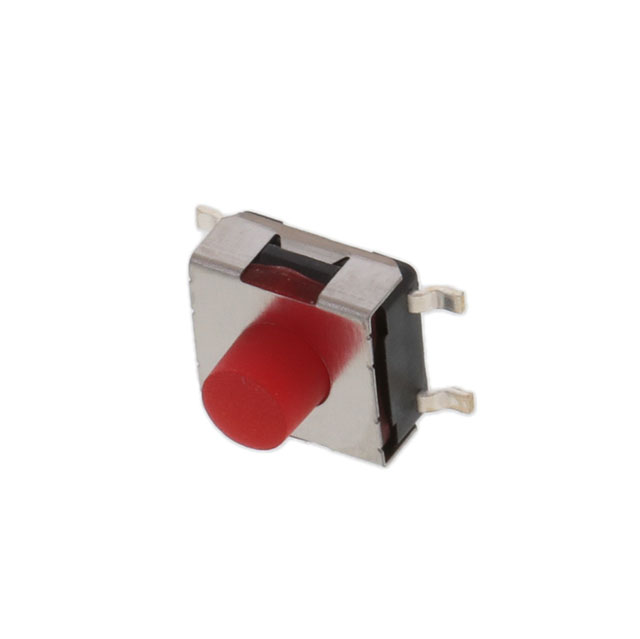

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

Specification	TSM9W-5.2-260-TR	TSM9W Series

Actuator Height off PCB, Vertical	5.2 mm	5.2 mm
Actuator Height off PCB, Vertical	-	3.1 mm
Actuator Material	Silicone Rubber	Silicone Rubber
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Washable	Washable
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Surface Mount	Surface Mount
Operating Force	260 gf	260 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	6.3 mm	6.3 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Gull Wing	Gull Wing

Part	Outline [x]	Outline [y]	Actuator Material	Illumination	Actuator Height off PCB, Vertical [z]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Termination Style	Circuit	Contact Rating @ Voltage	Actuator Orientation	Switch Function	Mounting Type	Features	Operating Force	Actuator Height off PCB, Vertical
E-Switch TSM9W-3.1C-160-TR	6.3 mm	6.2 mm	Silicone Rubber	Non-Illuminated	3.1 mm	-20 C	70 °C	Standard	Gull Wing	SPST-NO	0.05 A, 12 VDC	Top Actuated	Off-Mom	Surface Mount	Washable
E-Switch TSM9W-5.2-260-TR	6.3 mm	6.2 mm	Silicone Rubber	Non-Illuminated		-20 C	70 °C	Standard	Gull Wing	SPST-NO	0.05 A, 12 VDC	Top Actuated	Off-Mom	Surface Mount	Washable	260 gf	5.2 mm
