Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PC28F512P30EFA | PC28F512 Series |
|---|---|---|
| Access Time | 100 ns | 95 - 100 ns |
| Clock Frequency | 40 MHz | 40 - 52 MHz |
| Memory Format | FLASH | FLASH |
| Memory Interface | CFI | CFI, Parallel |
| Memory Organization | 32 M | 32 M |
| Memory Size | 64 MB | 64 MB |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

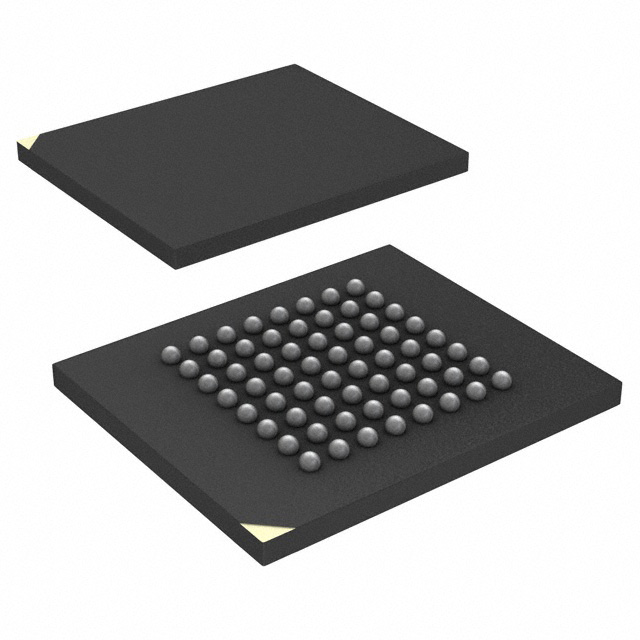

| Package / Case | 64-LBGA | 64-LBGA |
| Supplier Device Package | 64-LBGA | 64-LBGA |
| Technology | FLASH - NOR (MLC) | FLASH - NOR (MLC), FLASH - NOR |
| Voltage - Supply [Max] | 2 V | 2 - 3.6 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 - 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
PC28F512 Series
IC FLASH 512MBIT CFI 64EASYBGA
| Part | Mounting Type | Access Time | Memory Type | Memory Interface | Package / Case | Memory Organization | Voltage - Supply [Max] | Voltage - Supply [Min] | Clock Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Memory Size | Supplier Device Package | Memory Format | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Alliance Memory Inc PC28F512P30BFAFLASH - NOR (MLC) Memory IC 512Mbit CFI 40 MHz 100 ns 64-LBGA (11x13) | Surface Mount | 100 ns | Non-Volatile | CFI | 64-LBGA | 32 M | 2 V | 1.7 V | 40 MHz | 85 °C | -40 °C | 64 MB | 64-LBGA | FLASH | FLASH - NOR (MLC) |
Alliance Memory Inc PC28F512P30EFAFLASH - NOR (MLC) Memory IC 512Mbit CFI 40 MHz 100 ns 64-LBGA (11x13) | Surface Mount | 100 ns | Non-Volatile | CFI | 64-LBGA | 32 M | 2 V | 1.7 V | 40 MHz | 85 °C | -40 °C | 64 MB | 64-LBGA | FLASH | FLASH - NOR (MLC) |
Alliance Memory Inc PC28F512P33BFDFLASH - NOR Memory IC 512Mbit Parallel 52 MHz 95 ns 64-LBGA (11x13) | Surface Mount | 95 ns | Non-Volatile | Parallel | 64-LBGA | 32 M | 3.6 V | 2.3 V | 52 MHz | 85 °C | -40 °C | 64 MB | 64-LBGA | FLASH | FLASH - NOR |
Description
General part information
PC28F512 Series
FLASH - NOR (MLC) Memory IC 512Mbit CFI 40 MHz 100 ns 64-LBGA (11x13)
