Technical Specifications
Parameters and characteristics for this part
| Specification | PC28F512P33BFD |
|---|---|
| Access Time | 95 ns |
| Clock Frequency | 52 MHz |
| Memory Format | FLASH |
| Memory Interface | Parallel |
| Memory Organization | 32M x 16 |
| Memory Size | 64 MB |
| Memory Type | Non-Volatile |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

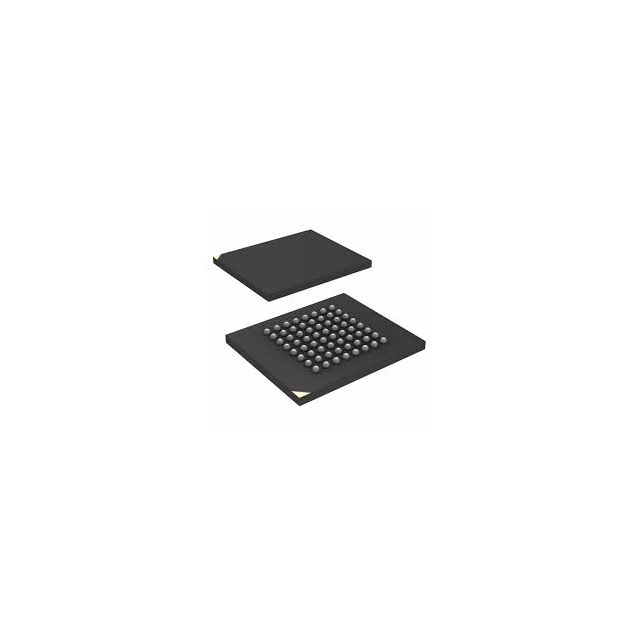

| Package / Case | 64-LBGA |
| Supplier Device Package | 64-LBGA (11x13) |
| Technology | FLASH - NOR |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PC28F512P33BFD
FLASH - NOR Memory IC 512Mbit Parallel 52 MHz 95 ns 64-LBGA (11x13)
