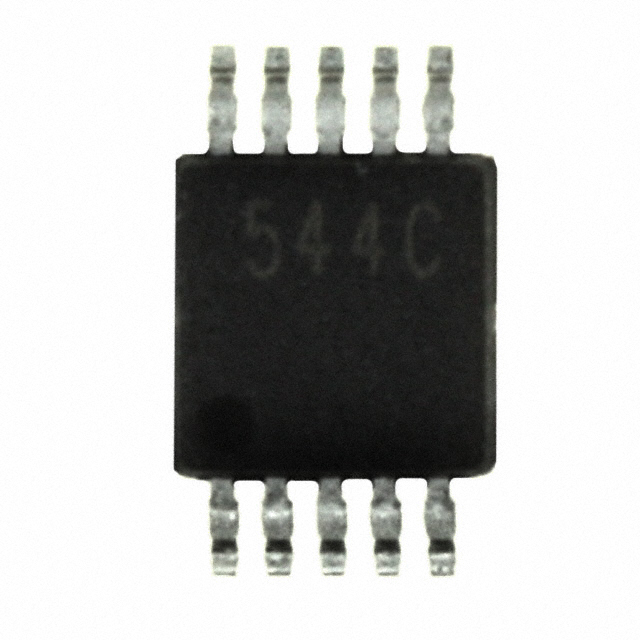

CS5344-CZZ
Cirrus Logic Inc.
ADC, DELTA-SIGMA, 24-BIT, 1 FUNC, 2 CHANNEL, SERIAL ACCESS, PDSO10, 3 MM BODY, LEAD FREE, MO-187, TSSOP-10
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS5344-CZZ
Cirrus Logic Inc.
ADC, DELTA-SIGMA, 24-BIT, 1 FUNC, 2 CHANNEL, SERIAL ACCESS, PDSO10, 3 MM BODY, LEAD FREE, MO-187, TSSOP-10
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS5344-CZZ |
|---|---|
| Data Interface | Serial |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-MSOP, 10-TFSOP |
| Package / Case [x] | 3 mm |
| Package / Case [x] | 0.118 in |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 96 kHz |
| Type | ADC, Audio |
| Voltage - Supply [Max] | 3.5 V, 5.25 V |
| Voltage - Supply [Min] | 4.75 V, 3.1 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 672 | $ 3.65 | |
Description
General part information
CS5344 Series
ADC, Audio 24 b 96k Serial 10-TSSOP
