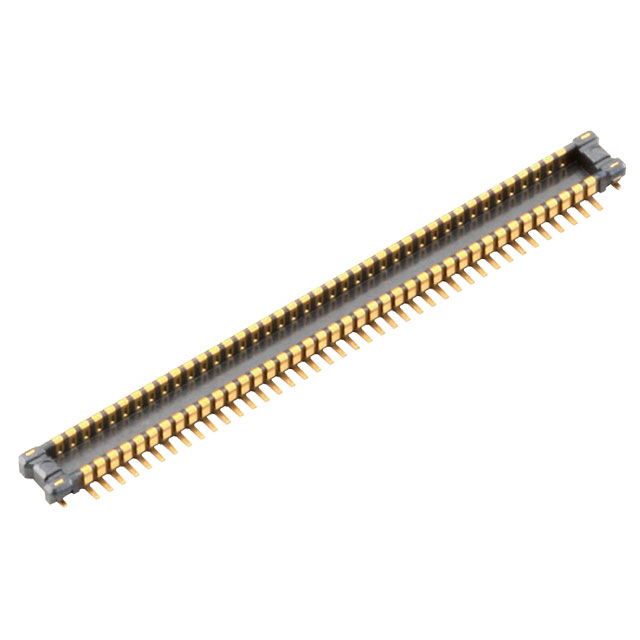

AXF6A8012

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXF6A8012

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Connector Type	Mated Stacking Heights	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Height Above Board	Height Above Board	Features	Number of Positions	Mounting Type
Panasonic Electric Works AXF6A8012	Header Outer Shroud Contacts	0.8 mm	Gold	0.35 mm	0.014 in	2	0.026 in	0.65 mm	Solder Retention	80	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 1.79

General part information

80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
