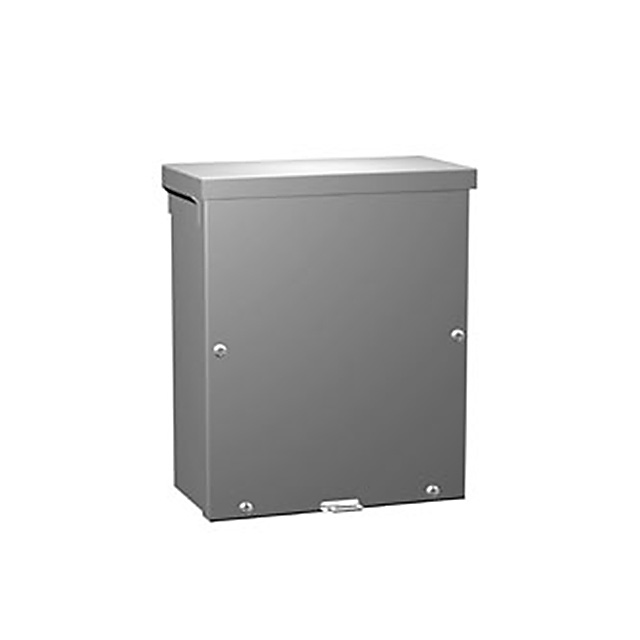

C3R24246SC

Active

Hammond Manufacturing

BOX STEEL GRAY 24"L X 24"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 24"L X 24"W

Technical Specifications

Parameters and characteristics for this part

Specification	C3R24246SC

Area (L x W)	3716 cm²
Area (L x W)	576 in²
Area (L x W) [custom]	3716 cm˛
Area (L x W) [custom]	576 in˛
Color	Gray
Container Type	Box
Design	Cover Included
Features	Knockouts, Wall Mount, Lockable
Height [z]	152.4 mm
Height [z]	6 in
Material	Metal, Steel
Ratings	IP24, UL-50, NEMA 3R
Size / Dimension [x]	24 in
Size / Dimension [x]	609.6 mm
Size / Dimension [y]	609.6 mm
Size / Dimension [y]	24 "
Weight	18.1 kg
Weight	40 lbs

Part	Weight	Weight	Area (L x W)	Area (L x W)	Design	Height [z]	Height [z]	Ratings	Features	Area (L x W) [custom]	Area (L x W) [custom]	Color	Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Container Type
Hammond Manufacturing C3R24246SC	18.1 kg	40 lbs	3716 cm²	576 in²	Cover Included	152.4 mm	6 in	IP24 NEMA 3R UL-50	Knockouts Lockable Wall Mount	3716 cm˛	576 in˛	Gray	Metal Steel	24 in	609.6 mm	609.6 mm	24 "	Box

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 191.29

General part information

Box Metal, Steel Gray Cover Included 24.000" L x 24.000" W (609.60mm x 609.60mm) X 6.000" (152.40mm)

Technical documentation and resources

No documents available
