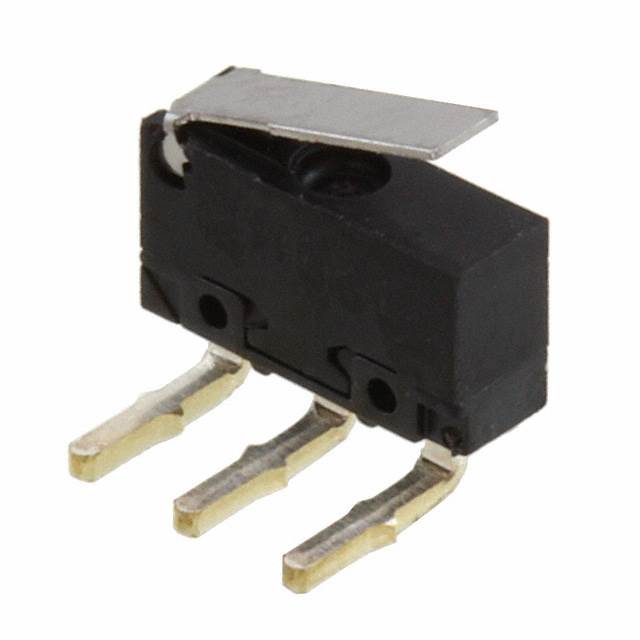

AV4624
ActivePanasonic Electric Works
SWITCH SNAP ACTION SPDT 0.5A 30V
Deep-Dive with AI
DocumentsHow to Read Date Codes
Technical Specifications
Parameters and characteristics for this part
| Specification | AV4624 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 500 mA |
| Differential Travel | 0.027 " |
| Differential Travel | 0.7 mm |
| Electrical Life | 20000 Steps |
| Features | Actuator Mounted Left Side |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Position [custom] | 0.228 " |
| Operating Position [custom] | 5.8 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.4 mm |
| Overtravel | 0.015 " |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.95 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.77 | |||
| 50 | $ 1.69 | |||
| 100 | $ 1.62 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.18 | |||
| 1000 | $ 1.14 | |||
| 5000 | $ 1.03 | |||
Description
General part information
AV462 Series
Switch SPDT Through Hole, Right Angle
