SB240E-G

Active

Comchip Technology

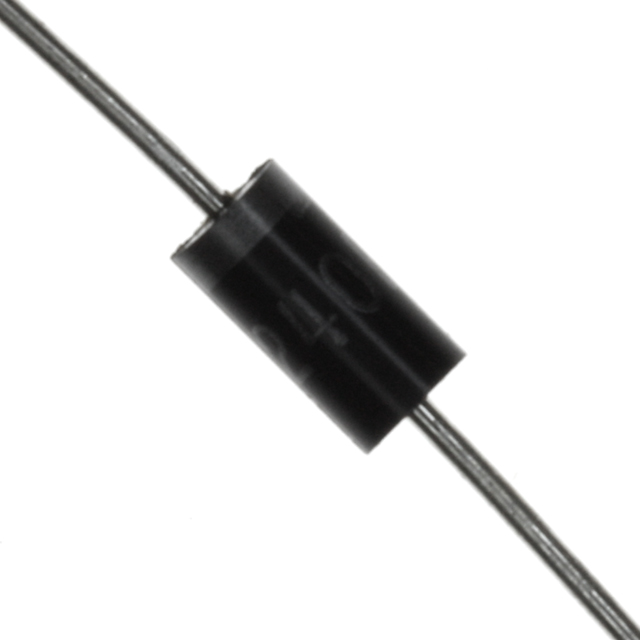

DIODE SCHOTTKY 40V 2A DO15

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 40V 2A DO15

Technical Specifications

Parameters and characteristics for this part

Specification	SB240E-G

Capacitance @ Vr, F	170 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-204AC, DO-15, Axial
Speed	200 mA, 500 ns
Supplier Device Package	DO-15
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV

DIODE SCHOTTKY 40V 2A DO15

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Speed	Package / Case	Capacitance @ Vr, F	Technology	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr
Comchip Technology SB240E-G	40 V	Through Hole	500 mV	DO-15	200 mA, 500 ns	Axial, DO-15, DO-204AC	170 pF	Schottky	125 °C	-65 C	2 A	500 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 2A Through Hole DO-15
