6100-W

Unknown

3M (TC)

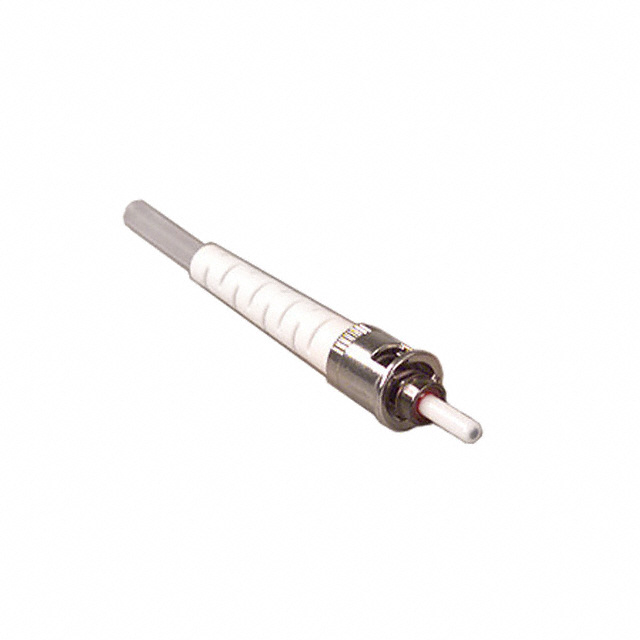

CONN FIBER ST PLUG SMPLX 125UM

Search across all available documentation for this part.

Unknown

3M (TC)

CONN FIBER ST PLUG SMPLX 125UM

Technical Specifications

Parameters and characteristics for this part

Specification	6100-W

Attenuation - Typ	-2 dB
Body Material	Engineered Resin
Boot Color	White
Cable Diameter [diameter]	0.9 mm
Connector Style	ST
Connector Type	Plug
Fastening Type	Bayonet Lock
Features	Strain Relief, Hot Melt, Dust Cap
Ferrule Material	Zirconia
Housing Color	Silver
Housing Material	Engineered Resin
Mating Cycles	500
Mode	Multimode
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Reflection	-25 dB
Simplex/Duplex	Simplex

Part	Attenuation - Typ	Features	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Connector Style	Body Material	Mode	Housing Material	Ferrule Material	Mating Cycles	Simplex/Duplex	Reflection	Mounting Type	Housing Color	Connector Type	Cable Diameter [diameter]	Boot Color
3M (TC) 6100-W	-2 dB	Dust Cap Hot Melt Strain Relief	85 °C	-40 °C	Bayonet Lock	ST	Engineered Resin	Multimode	Engineered Resin	Zirconia	500	Simplex	-25 dB	Free Hanging (In-Line)	Silver	Plug	0.9 mm	White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 8.62

General part information

Fiber Optic Plug Connector ST Simplex 125µm Silver
