NTE74HC109

Active

NTE Electronics, Inc

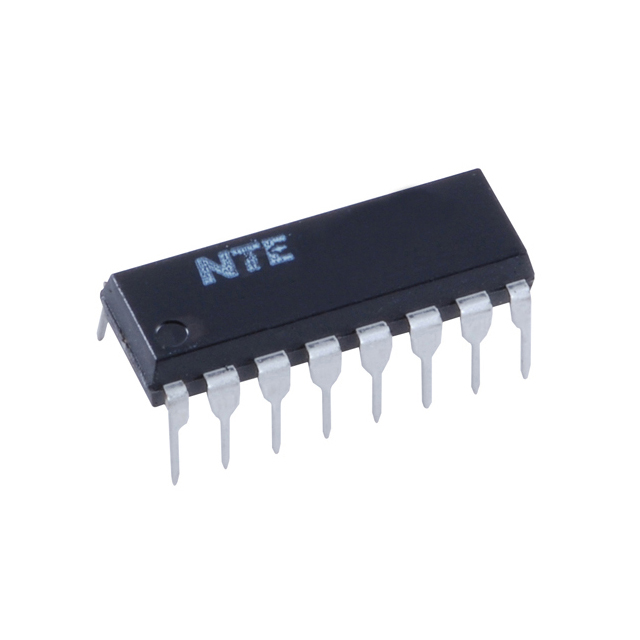

IC FF JK TYPE DUAL 1BIT 16DIP

Search across all available documentation for this part.

Active

NTE Electronics, Inc

IC FF JK TYPE DUAL 1BIT 16DIP

Technical Specifications

Parameters and characteristics for this part

Specification	NTE74HC109

Clock Frequency	60 MHz
Current - Output High, Low [custom]	5.2 mA
Current - Output High, Low [custom]	5.2 mA
Current - Quiescent (Iq)	4 çA
Function	Reset, Set(Preset)
Input Capacitance	10 pF
Mounting Type	Through Hole
Number of Bits per Element	1
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Complementary
Package / Case	0.26 in
Package / Case	6.6 mm
Package / Case	16-DIP
Supplier Device Package	16-DIP
Trigger Type	Positive Edge
Type	JK Type
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	2 V

Part	Type	Clock Frequency	Function	Supplier Device Package	Output Type	Number of Elements	Trigger Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Input Capacitance	Package / Case	Package / Case	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Number of Bits per Element
NTE Electronics, Inc NTE74HC109	JK Type	60 MHz	Reset Set(Preset)	16-DIP	Complementary	2	Positive Edge	5.2 mA	5.2 mA	4 çA	85 °C	-40 °C	10 pF	0.26 in	6.6 mm	16-DIP	2 V	6 V	Through Hole	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-DIP (0.260", 6.60mm)
