HS2P7M26-BP
ActiveSwitchcraft Inc.

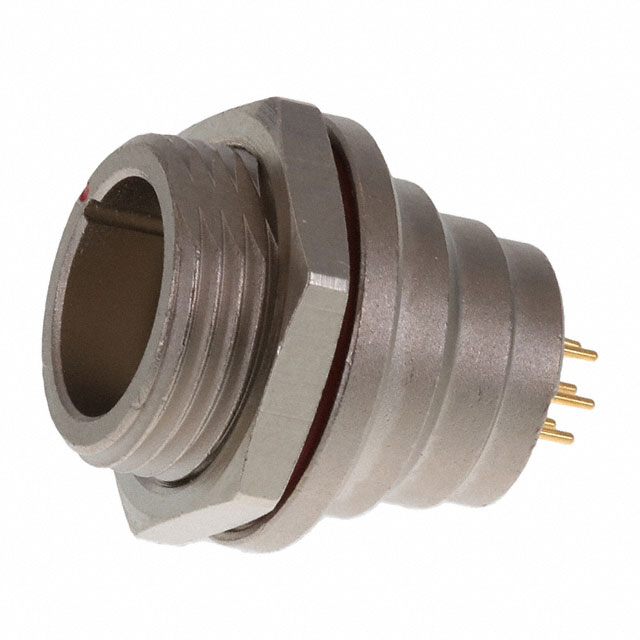

CONN RCPT MALE 7POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HS2P7M26-BP
ActiveSwitchcraft Inc.
CONN RCPT MALE 7POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HS2P7M26-BP | HS2P7M Series |
|---|---|---|
| Applications | Audio, Testing Equipment & Measurement, Agriculture, Medical, General | Audio, Testing Equipment & Measurement, Agriculture, Medical, General |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | - | UL94 HF-1 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Electroless Nickel | Electroless Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder, Crimp, Solder Cup |
| Voltage Rating | 30 VAC | 30 VAC |
HS2P7M Series
CONN CIRCULAR PIN 7 POS SOLDER ST THRU-HOLE 7 TERMINAL 1 PORT BULK
| Part | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Number of Positions | Voltage Rating | Mounting Type | Shielding | Fastening Type | Contact Material | Shell Finish | Connector Type | Termination | Contact Finish - Mating | Orientation | Mounting Feature | Insert Material | Primary Material | Applications | Color | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. HS2P7M26-BPE | IP66, IP67, IP68 | 135 °C | -40 °C | Copper Alloy | 7 | 30 VAC | Panel Mount, Through Hole | Shielded | Push-Pull | Copper Alloy | Electroless Nickel | Male Pins, Receptacle | Solder | Gold | Keyed | Bulkhead - Front Side Nut | Liquid Crystal Polymer (LCP) | Metal | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Silver | |
Switchcraft Inc. HS2P7M26 | IP66, IP67, IP68 | 135 °C | -40 °C | Copper Alloy | 7 | 30 VAC | Shielded | Push-Pull | Copper Alloy | Electroless Nickel | Male Pins, Receptacle | Crimp, Solder Cup | Gold | Keyed | Bulkhead - Rear Side Nut | Liquid Crystal Polymer (LCP) | Metal | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Silver | UL94 HF-1 | |
Switchcraft Inc. HS2P7M26-BP | IP66, IP67, IP68 | 135 °C | -40 °C | Copper Alloy | 7 | 30 VAC | Panel Mount, Through Hole | Shielded | Push-Pull | Copper Alloy | Electroless Nickel | Male Pins, Receptacle | Solder | Gold | Keyed | Bulkhead - Front Side Nut | Liquid Crystal Polymer (LCP) | Metal | Agriculture, Audio, General, Medical, Testing Equipment & Measurement | Silver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.91 | |
| 10 | $ 18.47 | |||
| 25 | $ 17.81 | |||
Description
General part information
HS2P7M Series
7 Position Circular Connector Receptacle, Male Pins Solder
