J1524CP12VDC

Active

CIT Relay and Switch

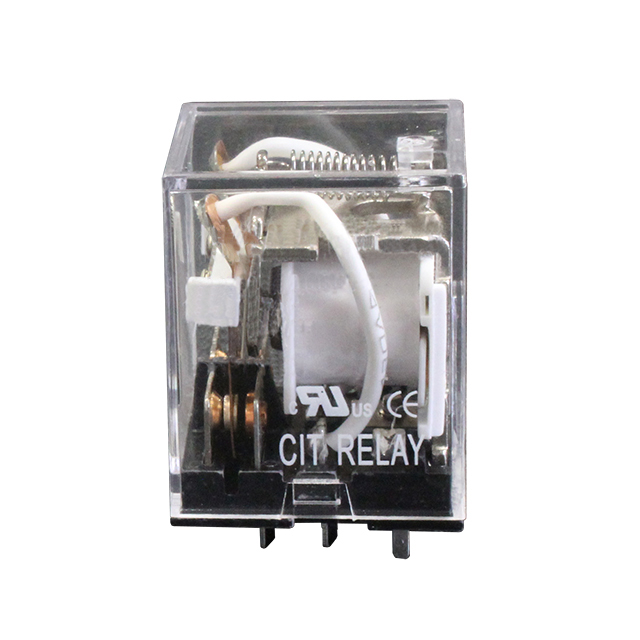

RELAY GEN PURPOSE 4PDT 10A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

J1524CP12VDC

Active

CIT Relay and Switch

RELAY GEN PURPOSE 4PDT 10A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J1524CP12VDC

Approval Agency	cURus, TUV
Coil Current	75 mA
Coil Resistance	160 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Load - Max Switching [Max]	3000 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	25 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage [Max]	300 VAC
Termination Style	PC Pin

J1524C Series

Part	Switching Voltage [Max]	Operate Time	Release Time	Coil Type	Relay Type	Contact Form	Contact Rating (Current)	Coil Current	Termination Style	Contact Material	Load - Max Switching [Max]	Mounting Type	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Must Operate Voltage	Coil Resistance	Coil Voltage	Features
CIT Relay and Switch J1524CT24VDCDT	300 VAC	25 ms	25 ms	Non Latching	General Purpose	4PDT (4 Form C)	10 A	37.5 mA	Plug In	Silver Cadmium Oxide (AgCdO)	3000 VA	Socketable	2.4 VDC	85 °C	-40 °C	cURus TUV	18 VDC	640 Ohms	24 VDC	Lighted Indicator Test Button
CIT Relay and Switch J1524CF120VAC	300 VAC	25 ms	25 ms	Non Latching	General Purpose	4PDT (4 Form C)	10 A	26.4 mA	Plug In	Silver Cadmium Oxide (AgCdO)	3000 VA	Chassis Mount	36 VAC	85 °C	-40 °C	cURus TUV	96 VAC	4.55 kOhms	120 VAC
CIT Relay and Switch J1524CF24VDC	300 VAC	25 ms	25 ms	Non Latching	General Purpose	4PDT (4 Form C)	10 A	37.5 mA	Plug In	Silver Cadmium Oxide (AgCdO)	3000 VA	Chassis Mount	2.4 VDC	85 °C	-40 °C	cURus TUV	18 VDC	640 Ohms	24 VDC
CIT Relay and Switch J1524CT110VDCD	300 VAC	25 ms	25 ms	Non Latching	General Purpose	4PDT (4 Form C)	10 A	10 mA	Plug In	Silver Cadmium Oxide (AgCdO)	3000 VA	Socketable	11 VDC	85 °C	-40 °C	cURus TUV	82.5 VDC	11000 Ohms	110 VDC	Lighted Indicator
CIT Relay and Switch J1524CF24VAC	300 VAC	25 ms	25 ms	Non Latching	General Purpose	4PDT (4 Form C)	10 A	130.4 mA	Plug In	Silver Cadmium Oxide (AgCdO)	3000 VA	Chassis Mount	7.2 VAC	85 °C	-40 °C	cURus TUV	19.2 VAC	184 Ohms	24 VAC
CIT Relay and Switch J1524CP12VDC	300 VAC	25 ms	25 ms	Non Latching	General Purpose	4PDT (4 Form C)	10 A	75 mA	PC Pin	Silver Cadmium Oxide (AgCdO)	3000 VA	Through Hole	1.2 VDC	85 °C	-40 °C	cURus TUV	9 VDC	160 Ohms	12 VDC
CIT Relay and Switch J1524CF12VDC	300 VAC	25 ms	25 ms	Non Latching	General Purpose	4PDT (4 Form C)	10 A	75 mA	Plug In	Silver Cadmium Oxide (AgCdO)	3000 VA	Chassis Mount	1.2 VDC	85 °C	-40 °C	cURus TUV	9 VDC	160 Ohms	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.49
		10	$ 4.21
		25	$ 3.74
		50	$ 3.55
		100	$ 3.37
		250	$ 3.29

Description

General part information

J1524C Series

General Purpose Relay 4PDT (4 Form C) 12VDC Coil Through Hole
