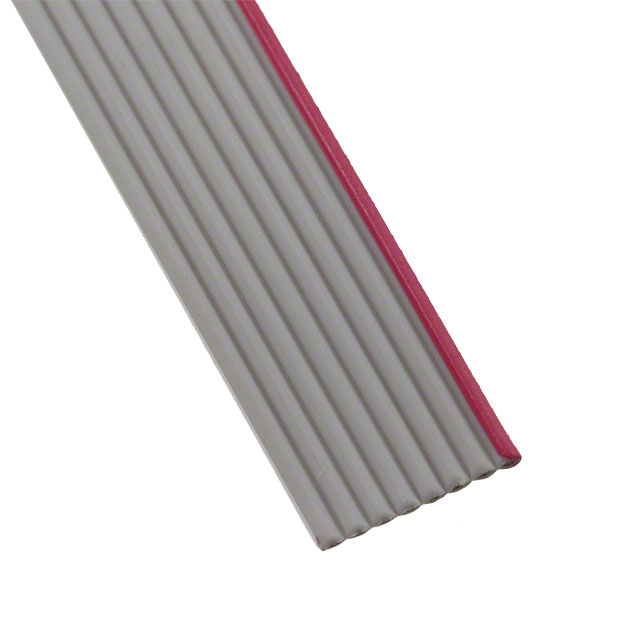

AWG28-08/G-1/300

Active

Assmann WSW Components

CBL RIBN 8COND 0.039 GRAY FOOT

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL RIBN 8COND 0.039 GRAY FOOT

Technical Specifications

Parameters and characteristics for this part

Specification	AWG28-08/G-1/300

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
First Conductor Mark	Red
Insulation Resistance	100 MOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Length	91.44 m
Length	300 ft
Number of Conductors	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-10 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	8 mm
Ribbon Width	0.315 in
Shielding	Unshielded
Spool Size	300 ft
Spool Size	91.44 m
Voltage	300 V
Wire Gauge	28 AWG

Part	Wire Gauge	Shielding	Pitch [x]	Pitch [x]	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Material	Jacket Color	Length	Length	Ribbon Width	Ribbon Width	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Ribbon Thickness	Ribbon Thickness	Spool Size	Spool Size	Length	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Insulation Resistance	Number of Conductors	Cable Type	First Conductor Mark
Assmann WSW Components AWG28-08/F-1/300	28 AWG	Unshielded	0.039 in	1 mm	Copper Tinned	3.05 m	10 ft	Poly-Vinyl Chloride (PVC)	Multiple	25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m	8 mm	0.315 in	7	36 AWG	UL Style 2651	0.89 mm	0.035 in	300 ft	91.44 m	Enter Number of Feet in Order Quantity	105 ░C	-10 °C	300 V	100 MOhms	8	Flat Cable
Assmann WSW Components AWG28-08/G-1/300	28 AWG	Unshielded	0.039 in	1 mm	Copper Tinned			Poly-Vinyl Chloride (PVC)	Gray	300 ft	91.44 m	8 mm	0.315 in	7	36 AWG	UL Style 2651	0.89 mm	0.035 in	300 ft	91.44 m	Enter Number of Feet in Order Quantity	105 ░C	-10 °C	300 V	100 MOhms	8	Flat Cable	Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Flat Ribbon Cable Gray 8 Conductors 0.039" (1.00mm) Flat Cable Enter Number of Feet in Order Quantity
