917780-1

Active

TE Connectivity AMP Connectors

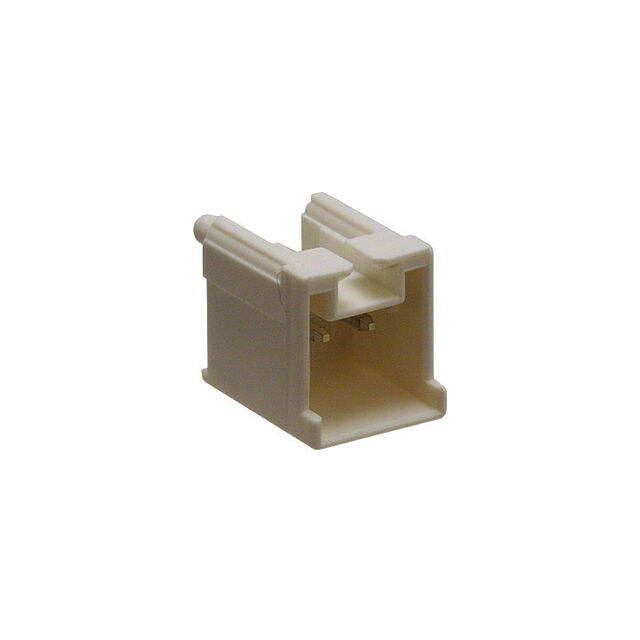

CONN HEADER VERT 2POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 2POS 2.5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	917780-1	917780 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Mating	0.185 in	0.185 in
Contact Length - Mating	4.7 mm	4.7 mm
Contact Length - Post	3.2 mm	3.2 mm
Contact Length - Post [x]	0.126 in	0.126 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Board Guide	Board Guide
Insulation Color	Natural	Black, Natural
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.7 mm	13.7 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	2	2
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Overall Contact Length	0.41 in	0.41 in
Overall Contact Length	10.41 mm	10.41 mm
Pitch - Mating	2.5 mm	2.5 mm
Pitch - Mating	0.098 in	0.098 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder
Voltage Rating	50 V	50 V

CONN HEADER VERT 2POS 2.5MM

Part	Insulation Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Style	Applications	Insulation Height	Insulation Height	Number of Positions	Number of Positions Loaded	Features	Material Flammability Rating	Insulation Material	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post [x]	Contact Type	Overall Contact Length	Overall Contact Length	Termination	Fastening Type	Number of Rows	Mated Stacking Heights	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Shrouding	Contact Material
TE Connectivity AMP Connectors 917780-9	Black	Through Hole	-30 ░C	105 ░C	Tin	Board to Cable/Wire	General Purpose	9.8 mm	0.386 in	2	All	Board Guide	UL94 V-0	Polyamide (PA66), Nylon 6/6, Glass Filled	Square	Header	2.5 mm	0.098 in	50 V	3.2 mm	0.126 in	Male Pin	0.41 in	10.41 mm	Kinked Pin, Solder	Latch Holder	1	13.7 mm	0.185 in	4.7 mm	3 A	Shrouded - 4 Wall	Copper Alloy
TE Connectivity AMP Connectors 917780-1	Natural	Through Hole	-30 ░C	105 ░C	Tin	Board to Cable/Wire	General Purpose	9.8 mm	0.386 in	2	All	Board Guide	UL94 V-0	Polyamide (PA66), Nylon 6/6, Glass Filled	Square	Header	2.5 mm	0.098 in	50 V	3.2 mm	0.126 in	Male Pin	0.41 in	10.41 mm	Kinked Pin, Solder	Latch Holder	1	13.7 mm	0.185 in	4.7 mm	3 A	Shrouded - 4 Wall	Copper Alloy
