R128292700

Active

Radiall USA, Inc.

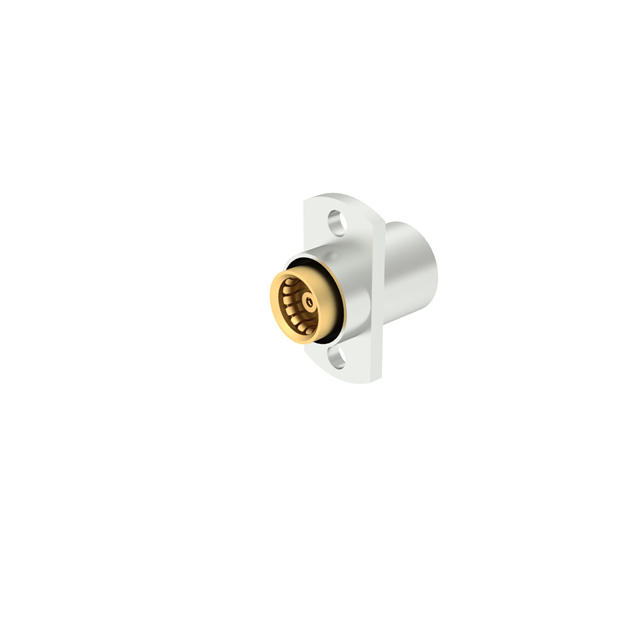

BMA / STRAIGHT 2 HOLE FLANGE FLO

Deep-Dive with AI

Search across all available documentation for this part.

R128292700

Active

Radiall USA, Inc.

BMA / STRAIGHT 2 HOLE FLANGE FLO

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R128292700

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	22 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	350 V

R12829 Series

Part	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Cable Group	Contact Termination	Impedance	Mounting Feature	Connector Type	Number of Ports	Center Contact Material	Housing Color	Shield Termination	Fastening Type	Mating Cycles	Voltage Rating	Body Material	Dielectric Material	Body Finish
Radiall USA, Inc. R128292727	Gold	22 GHz	-40 °C	105 ░C	BMA	RG-405 (.085" Semi Rigid)	Solder	50 Ohms	Flange	Female Socket Jack	1	Beryllium Copper	Silver	Solder	Snap-On	1000	350 V	Brass	Polytetrafluoroethylene (PTFE)	White Bronze
Radiall USA, Inc. R128292700W	Gold	22 GHz	-65 ░C	165 °C	BMA	RG-405 (.085" Semi Rigid)	Solder	50 Ohms	Flange	Female Socket Jack	1	Beryllium Copper	Gold	Solder	Snap-On	1000	350 V	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R128295700W	Gold	22 GHz	-40 °C	100 °C	BMA		Solder	50 Ohms	Flange	Female Socket Jack	1	Beryllium Copper	Gold	Solder	Snap-On	1000	350 V	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R128293702W	Gold	18 GHz	-65 ░C	105 ░C	BMA	RG-405 (.085" Semi Rigid)	Solder	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	1	Beryllium Copper	Silver	Solder	Snap-On	1000	350 V	Brass		White Bronze
Radiall USA, Inc. R128293702	Gold	18 GHz	-65 ░C	105 ░C	BMA	RG-405 (.085" Semi Rigid)	Solder	50 Ohms	Bulkhead - Front Side Nut	Female Socket Jack	1	Beryllium Copper	Silver	Solder	Snap-On	1000	350 V	Brass		White Bronze
Radiall USA, Inc. R128294700W	Gold	22 GHz	-40 °C	105 ░C	BMA	RG-405 (.085" Semi Rigid)	Solder	50 Ohms		Female Socket Jack	1	Beryllium Copper	Gold	Solder	Snap-On	1000	500 V	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R128292700	Gold	22 GHz	-65 ░C	165 °C	BMA	RG-405 (.085" Semi Rigid)	Solder	50 Ohms	Flange	Female Socket Jack	1	Beryllium Copper	Gold	Solder	Snap-On	1000	350 V	Stainless Steel	Polytetrafluoroethylene (PTFE)	Gold
Radiall USA, Inc. R128295727W	Gold	22 GHz	-40 °C	100 °C	BMA		Solder	50 Ohms	Flange	Female Socket Jack	1	Beryllium Copper	Gold	Solder	Snap-On	1000	350 V	Brass	Polytetrafluoroethylene (PTFE)	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 43.44
		10	$ 39.86
		25	$ 38.33
		50	$ 37.05
		100	$ 35.01

Description

General part information

R12829 Series

BMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder

Documents

Technical documentation and resources

No documents available
