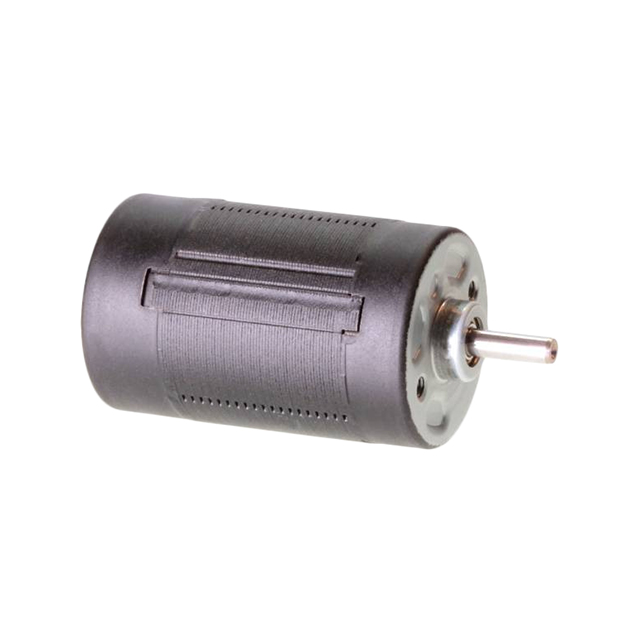

BLDC24P24A
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 8400 RPM 24V
BLDC24P24A
ActiveNMB TECHNOLOGIES
STANDARD MOTOR 8400 RPM 24V
Description
General part information
BLDC24P24 Series
Brushless (BLDC) DC Motor Standard 8400 RPM 20W 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | BLDC24P24A |
|---|---|
| Diameter - Shaft | 0.118 in |
| Function | Standard |
| Length - Shaft and Bearing | 0.472 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 0.63 in |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | -20 °C |
| Power - Rated | 20 VA |
| RPM | 8400 RPM |
| Termination Style | Connector |
| Torque - Rated (mNm) | 26 mNm |
| Torque - Rated (oz-in) | 3.68 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VAC |
| Weight | 0.177 lb |
