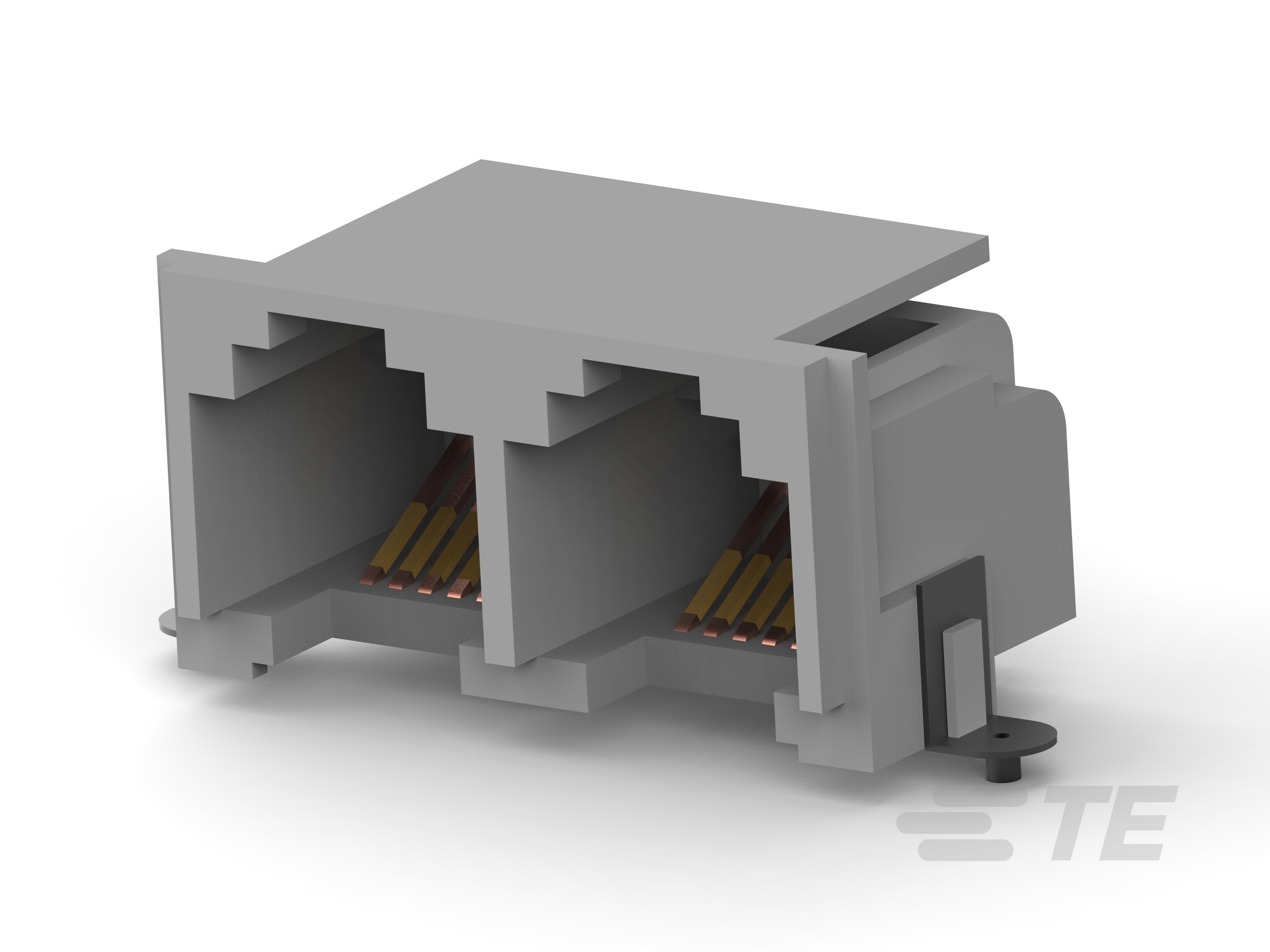

5406903-4
ActiveTE Connectivity AMP Connectors
CONN RJ-45 RCP 12 POS 1.01MM SOLDER RA SMD 12 TERMINAL 2 PORT CAT 3 REEL
5406903-4
ActiveTE Connectivity AMP Connectors
CONN RJ-45 RCP 12 POS 1.01MM SOLDER RA SMD 12 TERMINAL 2 PORT CAT 3 REEL
Description
General part information
5406903 Series
RJ45 Connector, Single Port, 1 x 1, Jack, Shielded, Cat 3, Standard - Latch Down, 8 Position, Standard Profile, OEG Miniature Relay PCF
Technical Specifications
Parameters and characteristics for this part
| Specification | 5406903-4 |
|---|---|
| Connector Type | Jack, RJ25, RJ11, RJ12, RJ14 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Copper Alloy |
| Features | Board Lock, Panel Stops |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Surface Mount |
| Number of Contacts | 6 |
| Number of Ports | 2 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
