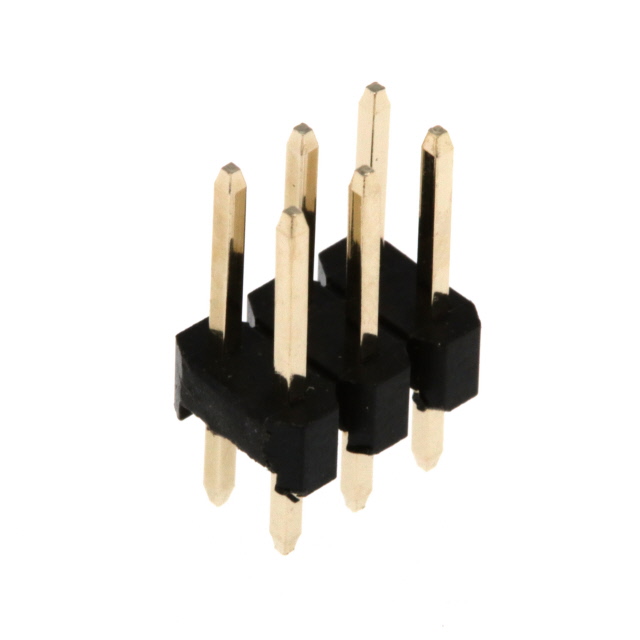

Specification	PR20203VBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.24 in
Contact Length - Post	0.118 in
Contact Material	Copper Zinc
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.098 in
Insulation Material	Polyethylene
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.457 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder

PR20203VB Series

Part	Contact Finish - Mating	Contact Length - Mating	Style	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Number of Positions	Insulation Height	Number of Rows	Insulation Color	Contact Type	Contact Material	Contact Shape	Number of Positions Loaded	Current Rating	Insulation Material	Overall Contact Length	Contact Finish Thickness - Mating	Pitch - Mating	Contact Length - Post	Fastening Type	Shrouding	Termination	Connector Type	Row Spacing - Mating
METZ CONNECT USA Inc. PR20203VBNN	Gold	0.24 in	Board	-40 °C	105 °C	Through Hole	3	0.098 in	1	Black	Male Pin	Copper Zinc	Square	All	3 A	Polyethylene	0.457 in	Flash	0.1 in	0.118 in	Push-Pull	Unshrouded	Solder	Header
METZ CONNECT USA Inc. PR20203VBDN	Gold	0.24 in	Board	-40 °C	105 °C	Through Hole	6	0.098 in	2	Black	Male Pin	Copper Zinc	Square	All		Polyethylene	0.457 in	Flash	0.1 in	0.118 in	Push-Pull	Unshrouded	Solder	Header	0.1 in
