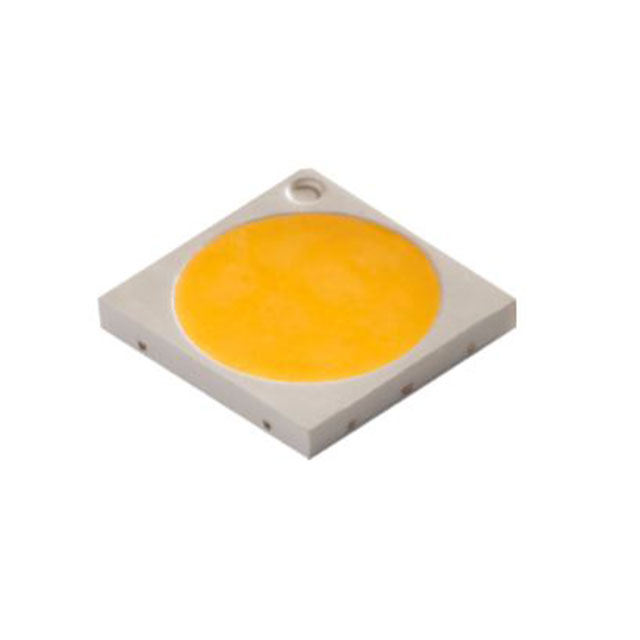

JR5050AWT-P-B40EH0000-N0000001

Active

Cree LED

LED J NEUTRAL WHT 4000K SMD

Search across all available documentation for this part.

Active

Cree LED

LED J NEUTRAL WHT 4000K SMD

Technical Specifications

Parameters and characteristics for this part

Specification	JR5050AWT-P-B40EH0000-N0000001

CCT (K)	4000 K
Color	Neutral, White
CRI (Color Rendering Index)	70
Current - Max [Max]	240 mA
Current - Test	100 mA
Flux @ 25°C, Current - Test	442 lm
Flux @ 85°C, Current - Test	405 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	192 lm/W
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	SMD
Thermal Resistance of Package	3.2 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	23.08 V

Part	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Current - Max [Max]	Viewing Angle	Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	CRI (Color Rendering Index)	Thermal Resistance of Package [diameter]	CCT (K)	Flux @ 85°C, Current - Test	Thermal Resistance of Package
Cree LED JR5050AWT-Q-U30EB0000-N0000001	5.8 V	SMD	138 lm/W	320 lm	1 A	120 °	400 mA	0.035 "	0.9 mm	2020	5050 Metric	Warm White	0.197 in	5 mm	0.197 "	5 mm	Surface Mount	90	3 °C/W
Cree LED JR5050AWT-P-H30EB0000-N0000001	5.77 V	SMD	171 lm/W	394 lm	1 A	120 °	400 mA	0.035 "	0.9 mm	2020	5050 Metric	Warm White	0.197 in	5 mm	0.197 "	5 mm	Surface Mount	80	3 °C/W	3000 K	361 lm
Cree LED JR5050AWT-P-B40EB0000-N0000001	5.77 V	SMD	192 lm/W	442 lm	1 A	120 °	400 mA	0.035 "	0.9 mm	2020	5050 Metric	Neutral White	0.197 in	5 mm	0.197 "	5 mm	Surface Mount	70	3 °C/W	4000 K	405 lm
Cree LED JR5050AWT-P-B40EH0000-N0000001	23.08 V	SMD	192 lm/W	442 lm	240 mA	120 °	100 mA	0.035 "	0.9 mm	2020	5050 Metric	Neutral White	0.197 in	5 mm	0.197 "	5 mm	Surface Mount	70		4000 K	405 lm	3.2 °C/W
Cree LED JR5050AWT-Q-B50EB0000-N0000001	5.8 V	SMD	181 lm/W	420 lm	1 A	120 °	400 mA	0.035 "	0.9 mm	2020	5050 Metric	Cool White	0.197 in	5 mm	0.197 "	5 mm	Surface Mount	70	3 °C/W	5000 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting J White, Neutral 4000K 3-Step MacAdam Ellipse 23.08V 100mA 120° 2020 (5050 Metric)
