796740-3

Active

TE Connectivity AMP Connectors

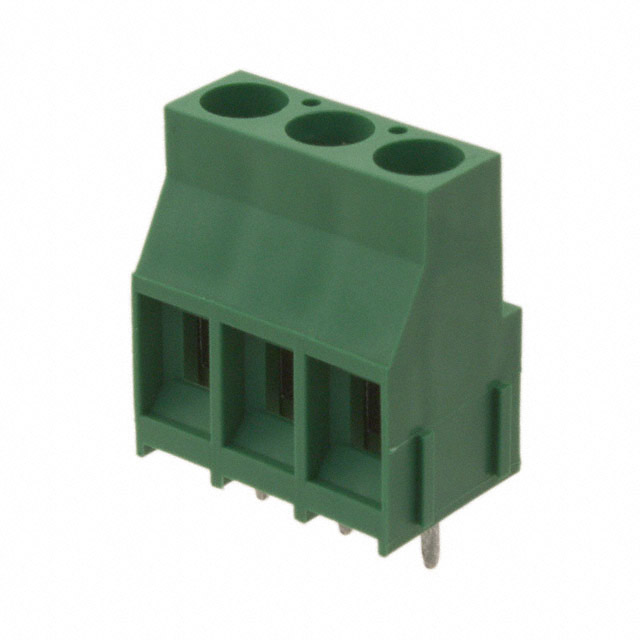

TERM BLK 3P SIDE ENT 6.35MM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERM BLK 3P SIDE ENT 6.35MM PCB

Technical Specifications

Parameters and characteristics for this part

TERM BLK 3P SIDE ENT 6.35MM PCB

Part	Wire Termination	Positions Per Level	Voltage	Number of Levels	Mating Orientation	Color	Clamp Material - Plating	Features	Screw Thread	Screw Material - Plating	Torque - Screw	Torque - Screw	Wire Gauge [Max]	Wire Gauge [Min]	Current	Mounting Type	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 796740-3	Screw - Rising Cage Clamp	3	300 V	1	Horizontal with Board	Green	Brass - Nickel Plated	Interlocking (Side)	M3	Brass - Nickel Plated	0.79 Nm	7 Lb-In	24 AWG	10 AWG	30 A	Through Hole	0.25 in	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
