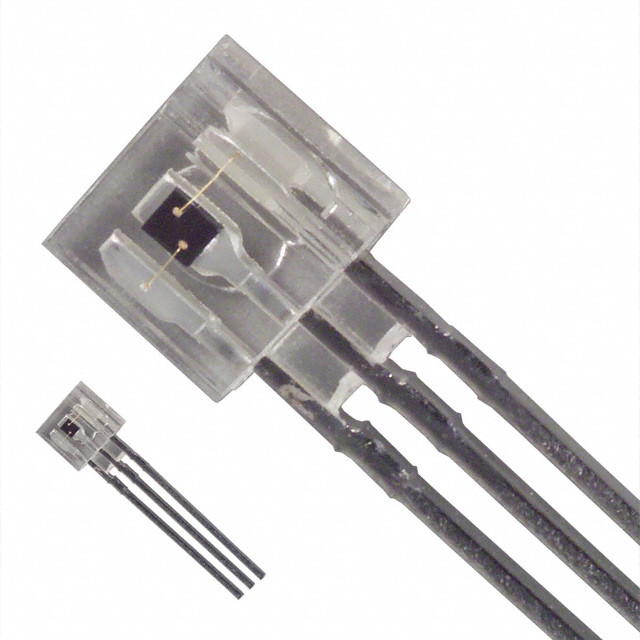

PNA1605F

Obsolete

Panasonic Industrial Automation Sales

SENSOR PHOTO 900NM SIDE VIEW RAD

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR PHOTO 900NM SIDE VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	PNA1605F

Current - Collector (Ic) (Max) [Max]	20 mA
Current - Dark (Id) (Max) [Max]	2 µA
Mounting Type	Through Hole
Orientation	Side View
Package / Case	Radial
Power - Max [Max]	100 mW
Viewing Angle	140 °
Voltage - Collector Emitter Breakdown (Max)	20 V
Wavelength	900 nm

Part	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Viewing Angle	Orientation	Voltage - Collector Emitter Breakdown (Max)	Wavelength	Package / Case	Power - Max [Max]	Mounting Type
Panasonic Industrial Automation Sales PNA1605F	2 µA	20 mA	140 °	Side View	20 V	900 nm	Radial	100 mW	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Phototransistors 900nm Side View Radial
