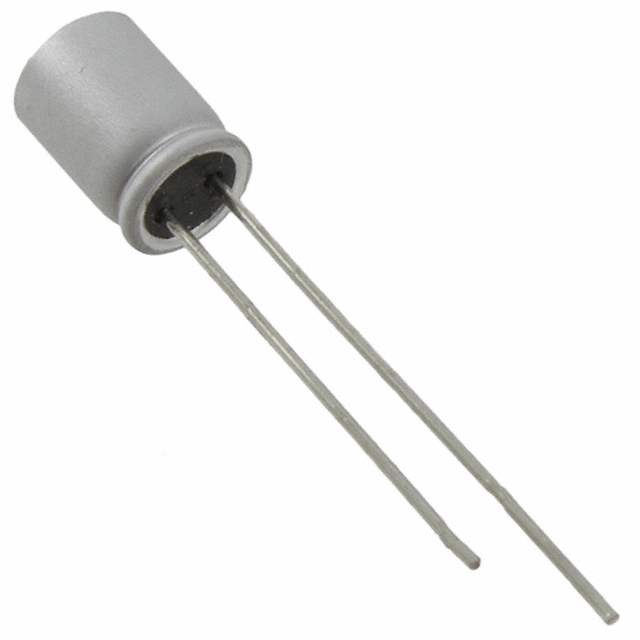

APSF2R0ELL102MF08S

Active

Chemi-Con

CAP ALUM POLY 1000UF 20% 2V TH

Search across all available documentation for this part.

Active

Chemi-Con

CAP ALUM POLY 1000UF 20% 2V TH

Technical Specifications

Parameters and characteristics for this part

Specification	APSF2R0ELL102MF08S

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	5 mOhm
Height - Seated (Max) [Max]	0.354 in
Height - Seated (Max) [Max]	9 mm
Lead Spacing	0.098 in
Lead Spacing	2.5 mm
Lifetime @ Temp.	20000 Hrs, 105 °C
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	5.9 A
Ripple Current @ Low Frequency	590 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	2 VDC

CAP ALUM POLY 1000UF 20% 2V TH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Lifetime @ Temp.	Voltage - Rated	Type	Package / Case	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Capacitance	Tolerance
Chemi-Con APSF2R0ELL102MF08S	105 ░C	-55 °C	General Purpose	0.098 in	2.5 mm	0.354 in	9 mm	Through Hole	0.248 in	6.3 mm	105 °C, 20000 Hrs	2 VDC	Polymer	Radial, Can	590 mA	5 mOhm	5.9 A	1000 µF	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 2 V Aluminum - Polymer Capacitors Radial, Can 5mOhm 20000 Hrs @ 105°C
