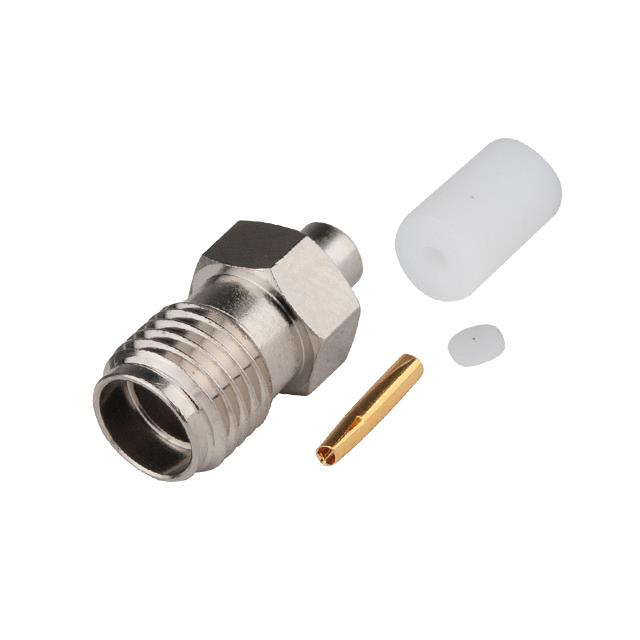

RSA-3555-SR1

Active

RF Industries

SMA FEMALE; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

SMA FEMALE; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RSA-3555-SR1

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 1671A, RG-405
Cable Group	0.085 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.7 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

SMA FEMALE; 50 OHMS

Part	Insertion Loss	Body Finish	Dielectric Material	Voltage Rating	Number of Ports	Impedance	Frequency - Max [Max]	Shield Termination	Contact Termination	Connector Type	Center Contact Material	Body Material	Connector Style	Mounting Type	Center Contact Plating	Housing Color	Cable Group	Cable Group
RF Industries RSA-3555-SR1	0.7 dB	Nickel	Polytetrafluoroethylene (PTFE)	500 V	1	50 Ohms	18 GHz	Solder	Solder	Female Socket, Jack	Beryllium Copper	Brass	SMA	Free Hanging (In-Line)	Gold	Silver	Belden 1671A, RG-405	0.085 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
