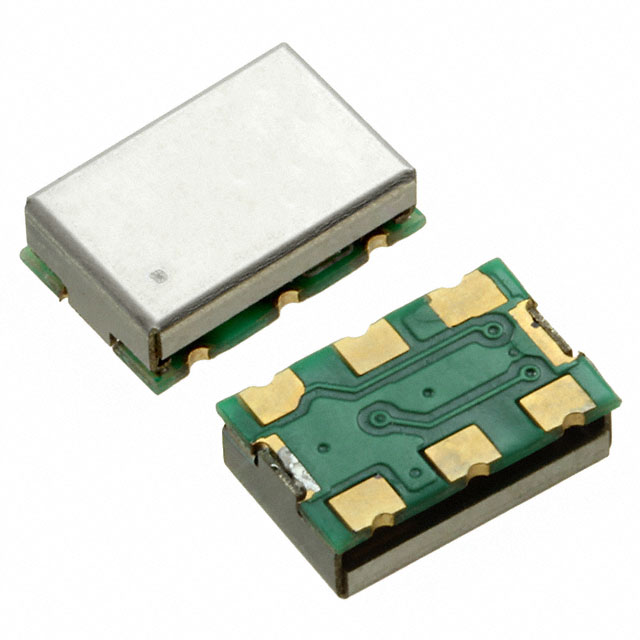

WF7021B0622.080000

Obsolete

Diodes Inc

XTAL OSC XO 622.0800MHZ LVPECL

Search across all available documentation for this part.

Obsolete

Diodes Inc

XTAL OSC XO 622.0800MHZ LVPECL

Technical Specifications

Parameters and characteristics for this part

Specification	WF7021B0622.080000

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	40 mA
Current - Supply (Max) [Max]	80 mA
Frequency	622.08 MHz
Frequency Stability	5 ppm
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	2.5 mm
Height - Seated (Max) [Max] [z]	0.098 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVPECL
Package / Case	6-SMD, No Lead
Type	XO (Standard)
Voltage - Supply	3.3 V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Function	Voltage - Supply	Current - Supply (Disable) (Max) [Max]	Mounting Type	Type	Current - Supply (Max) [Max]	Package / Case	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Output	Frequency Stability	Base Resonator
Diodes Inc WF7021B0622.080000	2.5 mm	0.098 in	Enable/Disable	3.3 V	40 mA	Surface Mount	XO (Standard)	80 mA	6-SMD No Lead	622.08 MHz	85 °C	-40 °C	LVPECL	5 ppm	Crystal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

622.08 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
