MF40060V1-1000U-A99

Active

Sunon Fans

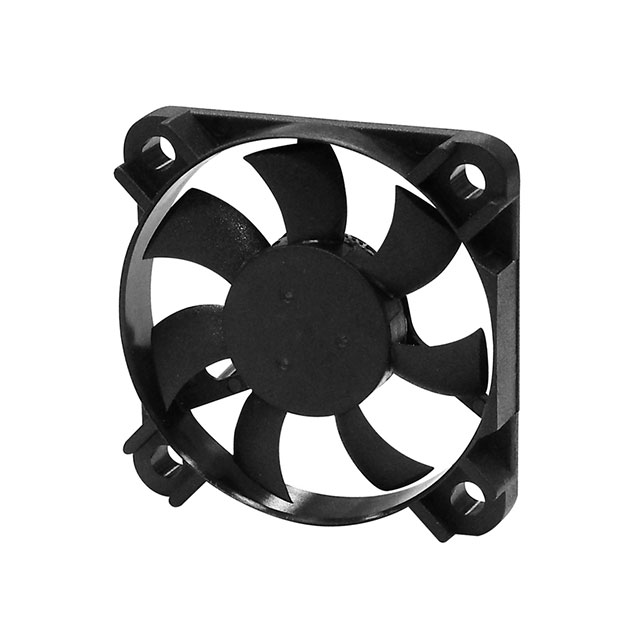

FAN AXIAL 40X6.5MM 5VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 40X6.5MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MF40060V1-1000U-A99

Air Flow	0.176 m³/min
Air Flow	6.3 CFM
Approval Agency	cURus, TUV
Current Rating (Amps)	0.087 A
Fan Type	Tubeaxial
Features	Auto Restart
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	440 mW
RPM	7000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.1 in H2O
Static Pressure	24.9 Pa
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	2.5 V
Weight	6.8 g
Weight	0.015 lb
Width [y]	6.5 mm

FAN AXIAL 40X6.5MM 5VDC WIRE

Part	Lifetime @ Temp.	Approval Agency	Power (Watts)	Weight	Weight	Static Pressure	Static Pressure	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Termination	RPM	Width [y]	Voltage - Rated	Features	Material - Blade	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]
Sunon Fans MF40060V1-1000U-A99	70000 Hrs	cURus, TUV	440 mW	6.8 g	0.015 lb	0.1 in H2O	24.9 Pa	0.087 A	2.5 V	6 VDC	2 Wire Leads	7000 RPM	6.5 mm	5 V	Auto Restart	Polybutylene Terephthalate (PBT)	0.176 m³/min	6.3 CFM	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	40 mm	Square	40 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Vapo-Bearing™ 6.3 CFM (0.176m³/min) 2 Wire Leads

Technical documentation and resources
