ANT-315-CW-RH

Obsolete

TE Connectivity Linx

RF ANT 315MHZ WHIP STR RP-SMA ML

Deep-Dive with AI

Search across all available documentation for this part.

ANT-315-CW-RH

Obsolete

TE Connectivity Linx

RF ANT 315MHZ WHIP STR RP-SMA ML

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ANT-315 Series

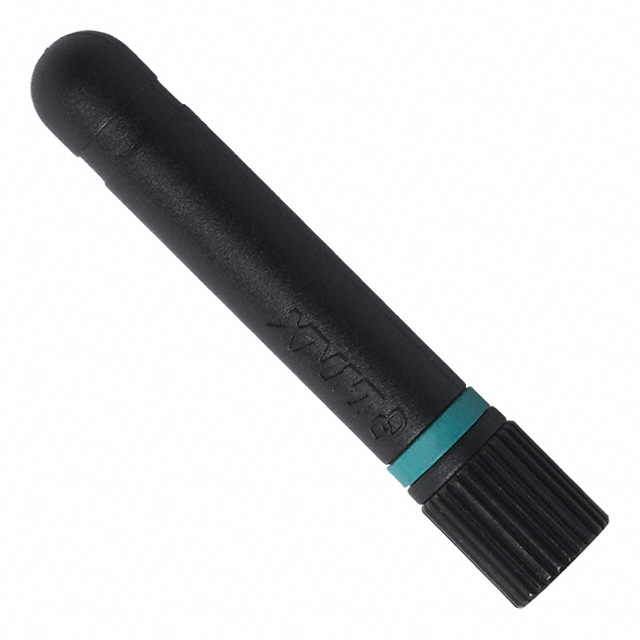

RF ANTENNA Alarms, ISM, Remote Control, Security Systems Whip, Straight RP-SMA Male Connector Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANT-315-CW-RH	ANT-315 Series

Antenna Type	Whip, Straight	Chip, Whip, Straight, Tilt, Whip, Helical
Applications	ISM, Alarms, Security Systems, Remote Control	ISM, Alarms, Security Systems, Remote Control
Frequency (Center/Band)	315 MHz	315 MHz
Frequency Group [Max]	1 GHz	1 GHz
Frequency Group [Min]	300 MHz	300 MHz
Frequency Range [Max]	320 MHz	317 - 325 MHz
Frequency Range [Min]	310 MHz	304 - 312 MHz
Gain	-	-4 - 0 dBi
Height (Max)	51 mm	8.89 - 131.57 mm
Height (Max)	-	1.5 - 142 mm
Height (Max)	-	117 mm
Height (Max)	-	2.106 - 4.606 in
Height (Max) [Max]	2.008 in	0.059 - 5.591 in
Mounting Type	Connector Mount	Surface Mount, Connector Mount, Through Hole
Number of Bands	1	1
RF Family/Standard	General ISM	General ISM
Termination	RP-SMA Male	Solder, RP-SMA Male, Screw-Mount
VSWR	1.9	1.9 - 2

ANT-315 Series

RF ANT 315MHZ CHIP SOLDER SMD

Part	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	VSWR	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Mounting Type	Number of Bands	Applications	Termination	Frequency Range [Min]	Frequency Range [Max]	Frequency (Center/Band)	Gain	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max)
TE Connectivity Linx ANT-315-SP	1.5 mm	0.059 in	General ISM	1.9	Chip	1 GHz	300 MHz	Surface Mount	1	Alarms, ISM, Remote Control, Security Systems	Solder	312 MHz	317 MHz	315 MHz
TE Connectivity Linx ANT-315-CW-HW	120 mm	4.724 "	General ISM	2	Whip, Straight	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	304 MHz	325 MHz	315 MHz	0 dBi
TE Connectivity Linx ANT-315-CW-HD			General ISM	2	Whip, Straight	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz		117 mm	4.606 in
TE Connectivity Linx ANT-315-PW-RA		5.18 in	General ISM	2	Tilt, Whip	1 GHz	300 MHz		1	Alarms, ISM, Remote Control, Security Systems	Screw-Mount			315 MHz				131.57 mm
TE Connectivity Linx ANT-315-HESM		0.35 in	General ISM	2	Helical	1 GHz	300 MHz	Surface Mount	1	Alarms, ISM, Remote Control, Security Systems	Solder	305 MHz	325 MHz	315 MHz				8.89 mm
TE Connectivity Linx ANT-315-CW-HWR-SMA	142 mm	5.591 in	General ISM	2	Tilt, Whip	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems		305 MHz	325 MHz	315 MHz	0 dBi
TE Connectivity Linx ANT-315-CW-RH		2.008 in	General ISM	1.9	Whip, Straight	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz				51 mm
TE Connectivity Linx ANT-315-PW-LP		1.988 in	General ISM	1.9	Whip, Straight	1 GHz	300 MHz		1	Alarms, ISM, Remote Control, Security Systems	Screw-Mount			315 MHz	-4 dBi			50.5 mm
TE Connectivity Linx ANT-315-CW-HWR-RPS	142 mm	5.591 in	General ISM	2	Tilt, Whip	1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	305 MHz	325 MHz	315 MHz	0 dBi
TE Connectivity Linx ANT-315-CW-RCS	53.5 mm		General ISM	2		1 GHz	300 MHz	Connector Mount	1	Alarms, ISM, Remote Control, Security Systems	RP-SMA Male	310 MHz	320 MHz	315 MHz			2.106 in
