1-1102295-7
ActiveTE Connectivity AMP Connectors

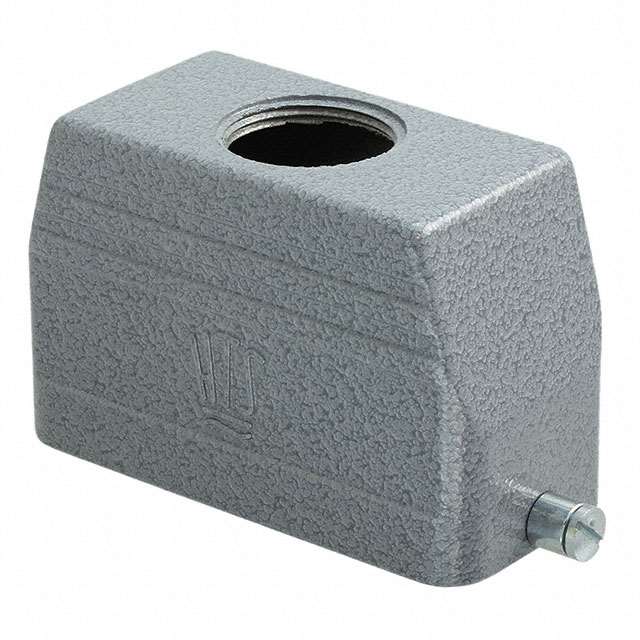

CONN HOOD TOP ENTRY SZ6 PG21
Deep-Dive with AI
Search across all available documentation for this part.
1-1102295-7
ActiveTE Connectivity AMP Connectors
CONN HOOD TOP ENTRY SZ6 PG21
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1102295-7 | 1102295 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom, Locking Clip (2) on Base Bottom |
| Size | 6 | 6 |
| Size / Dimension [x] | 93.5 mm | 93.5 mm |
| Size / Dimension [x] | 3.681 " | 3.681 " |
| Size / Dimension [y] | 1.693 in | 1.693 in |
| Size / Dimension [y] | 43 mm | 43 mm |
| Size / Dimension [z] | 60 mm | 60 mm |
| Size / Dimension [z] | 2.362 " | 2.362 " |
| Style | Top Entry | Top Entry |
| Thread Size | PG21 | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102295 Series
CONN HOOD TOP ENTRY SZ6 PG21
| Part | Connector Type | Style | Housing Color | Thread Size | Lock Location | Housing Material | Size | Ingress Protection | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102295-7 | Hood | Top Entry | Gray | PG21 | Locking Clip (1) on Base Bottom | Aluminum Alloy, Die Cast | 6 | IP65 - Dust Tight, Water Resistant | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Powder Coated |
TE Connectivity AMP Connectors 1-1102295-6 | Hood | Top Entry | Gray | PG21 | Locking Clip (2) on Base Bottom | Aluminum Alloy, Die Cast | 6 | IP65 - Dust Tight, Water Resistant | 60 mm | 93.5 mm | 1.693 in | 2.362 " | 43 mm | 3.681 " | Powder Coated |
Description
General part information
1102295 Series
Hood Connector Top Entry PG21 6 IP65 - Dust Tight, Water Resistant
Documents
Technical documentation and resources
No documents available
