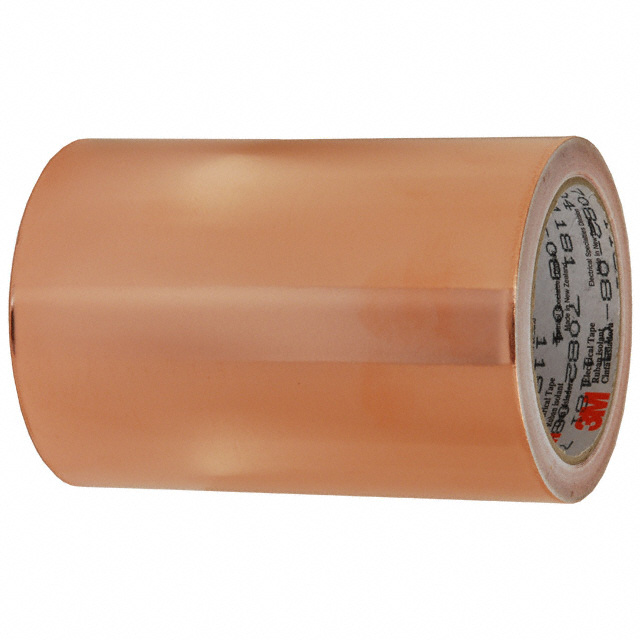

1181 X 6"

Active

RF EMI SHIELDING TAPE 54' X 6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Date Code Decipher +1

1181 X 6"

Active

RF EMI SHIELDING TAPE 54' X 6"

Deep-Dive with AI

DocumentsDatasheet Date Code Decipher +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1181 X 6"	1181 Series

Adhesive	Conductive, Single Sided	Acrylic, Conductive, Conductive, Single Sided, Conductive Acrylic
Backing, Carrier	-	Copper Foil
Color	-	Natural
Length	16.5 m	16.5 - 254 m
Length	54 ft	10 - 180 ft
Length	-	18 - 60 yd
Material	Copper Foil	Copper Foil
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	-	Rectangular
Shelf Life	60 Months	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Tape Type	-	Copper Foil
Thickness - Backing, Carrier	-	0.0014 in
Thickness - Backing, Carrier	-	1.4 mils
Thickness - Backing, Carrier	-	0.035 mm
Thickness - Overall	0.003 "	0.003 "
Thickness - Overall	0.07 mm	0.07 mm
Type	Shielding Tape	Shielding Tape, Safety Glasses, Shielding Sheet
Usage	-	EMI Shielding
Width	-	0.24 - 23 in
Width	-	6.1 - 584.2 mm
Width	-	0.75 - 195 mm
Width	-	0.25 - 7.7 "
Width	-	0.5 - 19.05 "
Width [y]	152.4 mm	9 - 152.4 mm
Width [y]	6 in	0.35 - 6 in

1181 Series

RF EMI SHIELDING TAPE 54' X 2"

Part	Length	Length	Type	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Material	Shelf Life Start	Thickness - Overall	Thickness - Overall	Width [x]	Width [x]	Adhesive	Width	Color	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Length	Backing, Carrier	Width [y]	Width [y]	Width
3M 1181 2" X 18 YDS	16.5 m	54 ft	Shielding Tape	60 Months	-40 °C	130 °C	27 °C, 80 °F	10 °C	Copper Foil	Date of Manufacture	0.003 "	0.07 mm	2 in	50.8 mm	Acrylic, Conductive
3M 1181 X 1.5"	16.5 m	54 ft		60 Months	-40 °C	130 °C	27 °C, 80 °F	10 °C	Copper Foil	Date of Manufacture	0.003 "	0.07 mm	1.5 in		Conductive, Single Sided	38.1 mm
3M 1181 6MMX16,5MMC36	16.5 m	54 ft		60 Months						Date of Manufacture			0.24 in	6.1 mm	Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil
3M 1181 12MMX165MMC19	16.5 m	54 ft		60 Months						Date of Manufacture			0.47 in	12 mm	Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil
3M 11815-00000-20			Safety Glasses
3M 11816-00000-20			Safety Glasses
3M 1181 X 6"	16.5 m	54 ft	Shielding Tape	60 Months	-40 °C	130 °C	27 °C, 80 °F	10 °C	Copper Foil	Date of Manufacture	0.003 "	0.07 mm			Conductive, Single Sided										152.4 mm	6 in
3M 1181 50MMX16,5MMC4	16.5 m	54 ft		60 Months						Date of Manufacture					Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil	50 mm	1.97 in
3M 1181 25MMX16,5MMC9	16.5 m	54 ft		60 Months						Date of Manufacture					Conductive Acrylic	25 mm	Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil			0.98 "
3M 1181 23"X18YD	16.5 m	54 ft		60 Months						Date of Manufacture			23 in	584.2 mm	Conductive Acrylic		Natural	EMI Shielding	0.0014 in	1.4 mils	0.035 mm	Copper Foil	18 yd	Copper Foil

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 395.98
		10	$ 384.07
		26	$ 381.09

Description

General part information

1181 Series

RF EMI Shielding Tape 1181 Copper Foil Conductive, Single Sided 6.000" (152.40mm) X 54.000' (16.50m) X 0.003" (0.07mm)
