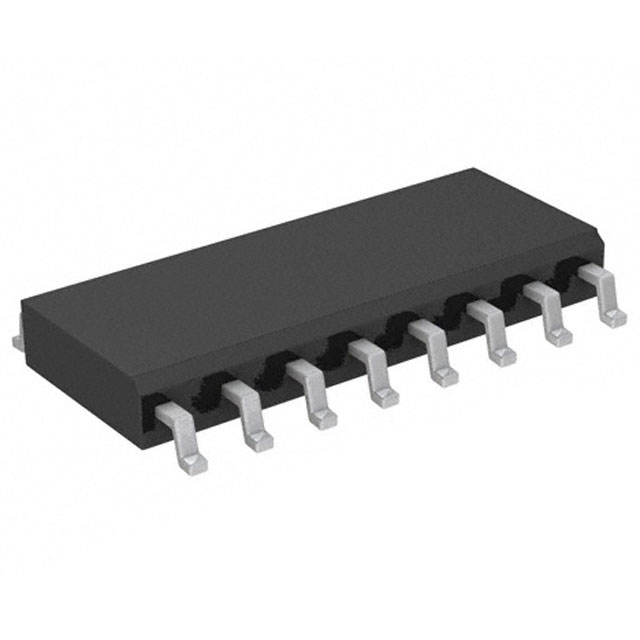

QS74FCT163DTQ
ActiveQuality Semiconductor
IC BINARY COUNTER 4-BIT
Deep-Dive with AI
Search across all available documentation for this part.
QS74FCT163DTQ
ActiveQuality Semiconductor
IC BINARY COUNTER 4-BIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QS74FCT163DTQ | 74FCT163 Series |
|---|---|---|
| - | - | |
| Direction | Up | Up |
| Logic Type | Binary Counter | Binary Counter |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Bits per Element | 4 | 4 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Reset | Asynchronous | Asynchronous |
| Timing | Synchronous | Synchronous |
| Trigger Type | Positive Edge | Positive Edge |
| Voltage - Supply | - | 4.75 V |
| Voltage - Supply | - | 5.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 111 | $ 2.70 | |
74FCT163 Series
BINARY COUNTER, FCT SERIES, SYN
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Reset | Timing | Logic Type | Mounting Type | Direction | Number of Bits per Element | Voltage - Supply [Min] | Voltage - Supply [Max] | Trigger Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
Quality Semiconductor QS74FCT163TS0 | |||||||||||
Quality Semiconductor QS74FCT163ATP | |||||||||||
Quality Semiconductor QS74FCT163TQ | |||||||||||
Quality Semiconductor QS74FCT163CTQ | 70 °C | 0 °C | Asynchronous | Synchronous | Binary Counter | Surface Mount | Up | 4 | 4.75 V | 5.25 V | Positive Edge |
Quality Semiconductor QS74FCT163TSI | |||||||||||
Quality Semiconductor QS74FCT163DTQ | 70 °C | 0 °C | Asynchronous | Synchronous | Binary Counter | Surface Mount | Up | 4 | Positive Edge | ||
Quality Semiconductor QS74FCT163ATS1 | 70 °C | 0 °C | Asynchronous | Synchronous | Binary Counter | Surface Mount | Up | 4 | Positive Edge | ||
Quality Semiconductor QS74FCT163CTSO | 70 °C | 0 °C | Asynchronous | Synchronous | Binary Counter | Surface Mount | Up | 4 | Positive Edge |
Description
General part information
74FCT163 Series
Counter IC Binary Counter Element 4 Bit Positive Edge
