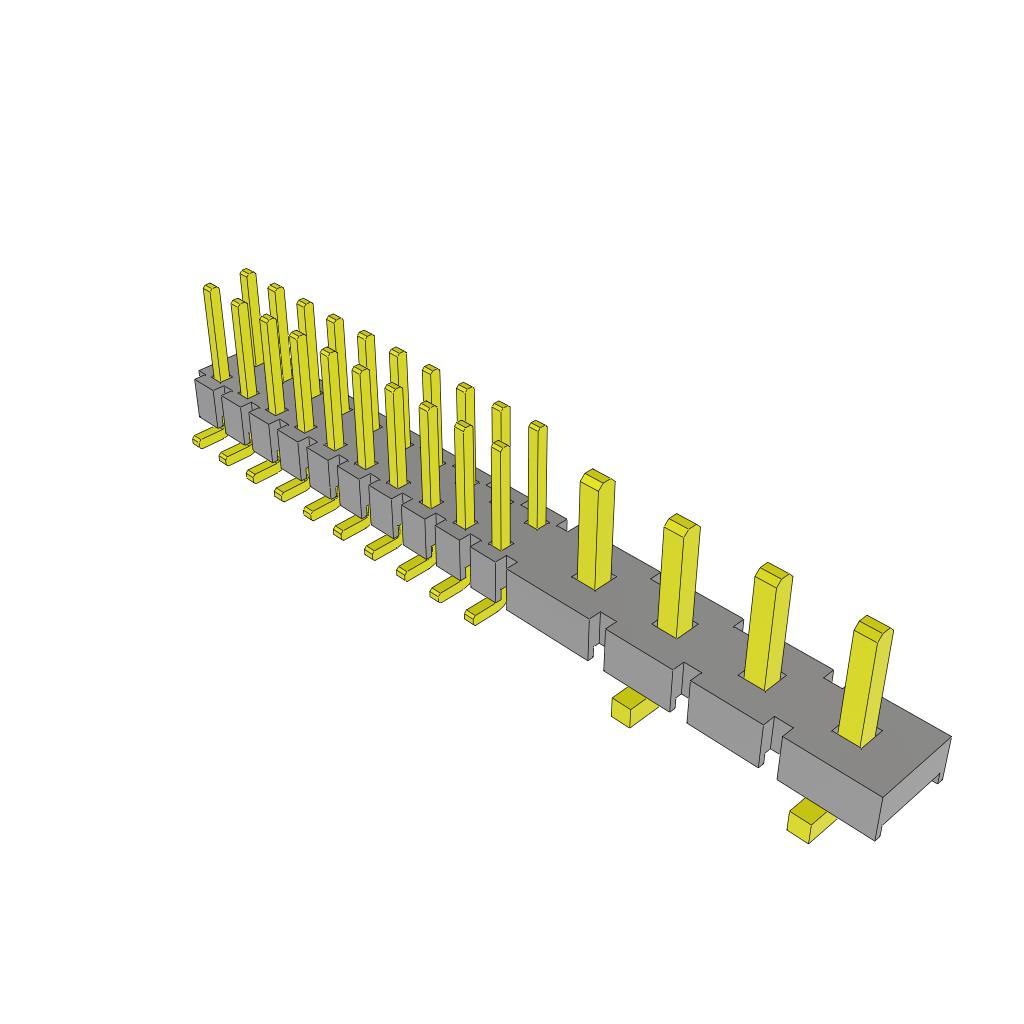

HPMC-110-02-L-D-04

Active

Samtec Inc.

.100" SIGNAL/POWER COMBO TERMINA

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" Signal/Power Combo Terminal Strip Datasheet

HPMC-110-02-L-D-04

Active

Samtec Inc.

.100" SIGNAL/POWER COMBO TERMINA

Deep-Dive with AI

Documents.100" Signal/Power Combo Terminal Strip Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPMC-110-02-L-D-04

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions [custom]	4
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	1200 VDC, 850 VAC

HPMC-110 Series

Power to the Board .100" Signal/Power Combo Terminal Strip

Part	Contact Finish - Mating	Number of Positions Loaded	Connector Type	Fastening Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions	Contact Type	Contact Shape	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Material	Contact Finish - Post	Termination	Shrouding	Overall Contact Length	Overall Contact Length	Number of Positions [custom]	Contact Length - Post	Contact Length - Post	Number of Positions [custom]	Number of Positions [custom]	Contact Length - Mating [x]	Number of Positions [custom]	Number of Positions [custom]
Samtec Inc. HPMC-102-04-L-D-04	Gold	All	Header	Push-Pull	Surface Mount	8.13 mm	0.32 in	Black	8	Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded
Samtec Inc. HPMC-110-03-L-D-04	Gold	All	Header	Push-Pull	Through Hole	8.13 mm	0.32 in	Black	24	Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded	13.21 mm	0.52 in	4	2.54 mm	0.1 in
Samtec Inc. HPMC-103-04-L-D-02	Gold	All	Header	Push-Pull	Surface Mount	8.13 mm	0.32 in	Black		Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded			2			8	6
Samtec Inc. HPMC-110-04-L-D-04	Gold	All	Header	Push-Pull	Surface Mount	8.13 mm	0.32 in	Black	24	Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded			4
Samtec Inc. HPMC-110-01-L-D-02	Gold	All	Header	Push-Pull	Through Hole	5.84 mm		Black	22	Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded	10.92 mm	0.43 in		2.54 mm	0.1 in			0.23 in
Samtec Inc. HPMC-110-04-L-D-02	Gold	All	Header	Push-Pull	Surface Mount	8.13 mm	0.32 in	Black	22	Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded
Samtec Inc. HPMC-124-04-T-D-04		All	Header	Push-Pull	Surface Mount	8.13 mm	0.32 in	Black		Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)			UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded									52	4
Samtec Inc. HPMC-110-02-L-D-04	Gold	All	Header	Push-Pull	Surface Mount	5.84 mm		Black	24	Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded			4					0.23 in
Samtec Inc. HPMC-103-01-L-D-02	Gold	All	Header	Push-Pull	Through Hole	5.84 mm		Black		Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded	10.92 mm	0.43 in	2	2.54 mm	0.1 in	8	6	0.23 in
Samtec Inc. HPMC-110-03-T-D-04		All	Header	Push-Pull	Through Hole	8.13 mm	0.32 in	Black	24	Male Pin	Square	850 VAC 1200 VDC	-55 °C	125 °C	Liquid Crystal Polymer (LCP)			UL94 V-0	Phosphor Bronze	Tin	Solder	Unshrouded	13.21 mm	0.52 in	4	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 10.95
