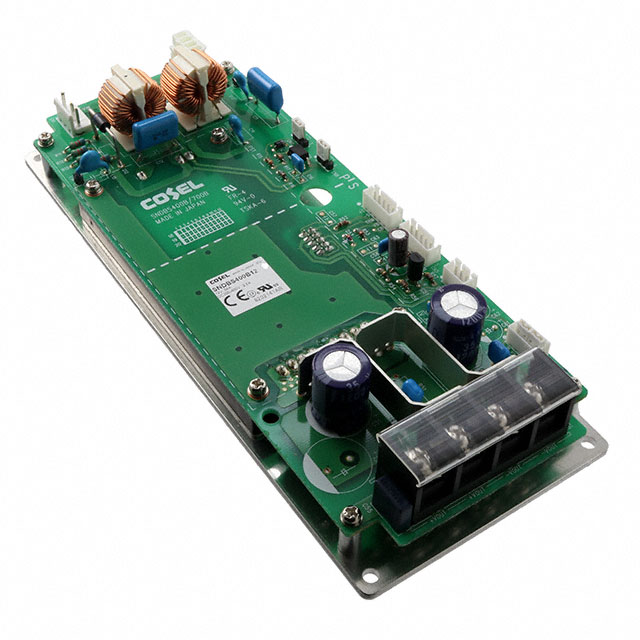

SNDBS400B12

Obsolete

Cosel USA, Inc.

DC/DC CONVERTER 12V 408W

Search across all available documentation for this part.

Obsolete

Cosel USA, Inc.

DC/DC CONVERTER 12V 408W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Applications	Number of Outputs	Power (Watts)	Mounting Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]
Cosel USA, Inc. SNDBS400B15	400 V	ITE (Commercial)	1	405 W	Chassis Mount	87 %	-20 °C	80 ¯C	15 V	Open Frame	8.75 "	3.51 in	222.3 mm	1.75 "	44.5 mm	89.2 mm	CE cURus	200 V
Cosel USA, Inc. SNDBS400B28	400 V	ITE (Commercial)	1	406 W	Chassis Mount	88 %	-20 °C	80 ¯C	28 V	Open Frame	8.75 "	3.51 in	222.3 mm	1.75 "	44.5 mm	89.2 mm	CE cURus	200 V	14.5 A
Cosel USA, Inc. SNDBS400B18	400 V	ITE (Commercial)	1	396 W	Chassis Mount	89 %	-20 °C	80 ¯C	18 V	Open Frame	8.75 "	3.51 in	222.3 mm	1.75 "	44.5 mm	89.2 mm	CE cURus	200 V	22 A
Cosel USA, Inc. SNDBS400B12	400 V	ITE (Commercial)	1	408 W	Chassis Mount	87 %	-20 °C	80 ¯C	12 V	Open Frame	8.75 "	3.51 in	222.3 mm	1.75 "	44.5 mm	89.2 mm	CE cURus	200 V	34 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 273.42

General part information

Open Frame DC DC Converter 1 Output 12V 34A 400V Input
