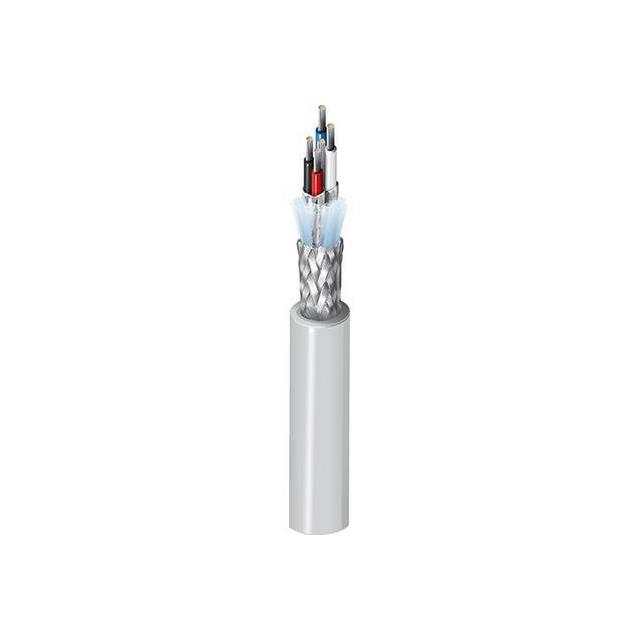

7896A T5U1000
ActiveBelden Inc.
MULTI-PAIR 4COND 16/18AWG
Deep-Dive with AI
Search across all available documentation for this part.
7896A T5U1000
ActiveBelden Inc.
MULTI-PAIR 4COND 16/18AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7896A T5U1000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon, Polypropylene (PP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 29, 30 |
| Conductor Strand [x] | 19 |
| Features | Drain Wire, Flame Retardant, UV Resistant, Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.525 in |
| Jacket (Insulation) Diameter [diameter] | 13.34 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.06 in |
| Jacket (Insulation) Thickness | 1.524 mm |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style TC-ER |
| Shield Coverage | 100 %, 65 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 600 V |
| Wire Gauge | 18 AWG, 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 8.13 | |
Description
General part information
7896A Series
4 (2 Pair) Conductor Multi-Pair Cable Gray 16 AWG, 18 AWG Foil, Braid 1000.0' (304.8m)
