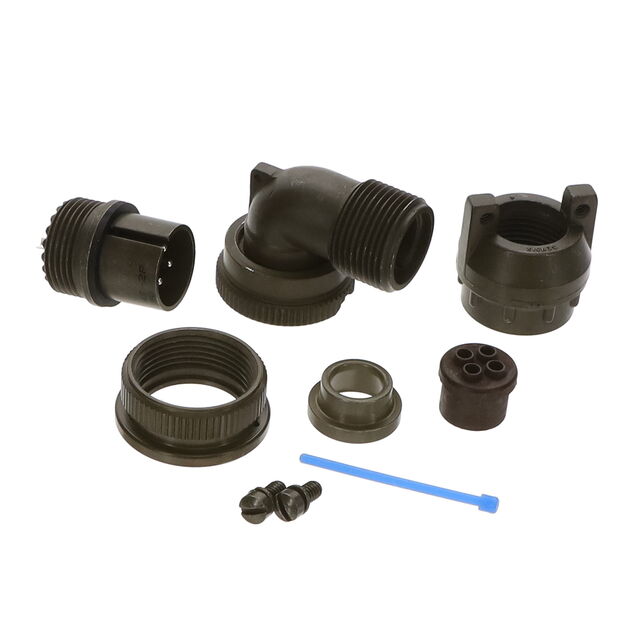

MS3108E14S-2P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E14S-2P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108E14S-2P | MS3108E14 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Cable Opening [diameter] | 10.31 mm | 10.31 mm |
| Cable Opening [diameter] | 0.406 in | 0.406 in |
| Color | Olive Drab | Olive Drab |
| Connector Type | Plug, Male Pins | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 13 A |
| Features | Coupling Nut, Cable Clamp | Coupling Nut, Cable Clamp |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 4 | 2 - 6 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015, MIL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 14S-2 | 14S-2, 14S-9, 14S-5, 14S-7, 14S-6 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VDC, 200 VAC | 200 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 43.58 | |
| 10 | $ 39.99 | |||
| 25 | $ 38.45 | |||
| 50 | $ 37.17 | |||
| 100 | $ 35.12 | |||
| 250 | $ 34.09 | |||
MS3108E14 Series
MIL-5015 MS/AC THREADED PLUG
| Part | Current Rating (Amps) | Color | Orientation | Features | Ingress Protection | Grade | Number of Positions | Contact Finish - Mating | Shielding | Qualification | Insert Material | Primary Material | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Applications | Mounting Type | Cable Opening [diameter] | Cable Opening [diameter] | Voltage Rating | Shell Material | Connector Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E14S-2P | 13 A | Olive Drab | N | Cable Clamp, Coupling Nut | Environment Resistant | Military | 4 | Silver | Unshielded | MIL-DTL-5015 | Neoprene | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | 14S-2 | Marine, Military | Free Hanging (In-Line), Right Angle | 10.31 mm | 0.406 in | 200 VAC, 250 VDC | Aluminum Alloy | Male Pins, Plug | Copper Alloy |
Amphenol Industrial Operations MS3108E14S-12P | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E14S-9P | 13 A | Olive Drab | N | Cable Clamp, Coupling Nut | Environment Resistant | Military | 2 | Silver | Unshielded | MIL-DTL-5015 | Neoprene | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | 14S-9 | Marine, Military | Free Hanging (In-Line), Right Angle | 10.31 mm | 0.406 in | Aluminum Alloy | Male Pins, Plug | Copper Alloy | |
Amphenol Industrial Operations MS3108E14S-5S | Olive Drab | N | Cable Clamp, Coupling Nut | Environment Resistant | Silver | Unshielded | MIL-5015 | Neoprene | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | 14S-5 | Marine, Military | Free Hanging (In-Line), Right Angle | Aluminum Alloy | Female Sockets, Plug | Copper Alloy | ||||||
Amphenol Industrial Operations MS3108E14S-7P | 13 A | Olive Drab | N | Cable Clamp, Coupling Nut | Environment Resistant | Military | Silver | Unshielded | MIL-DTL-5015 | Neoprene | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | 14S-7 | Marine, Military | Free Hanging (In-Line), Right Angle | 10.31 mm | 0.406 in | Aluminum Alloy | Male Pins, Plug | Copper Alloy | ||
Amphenol Industrial Operations MS3108E14S-5P | 13 A | Olive Drab | N | Cable Clamp, Coupling Nut | Environment Resistant | Military | Silver | Unshielded | MIL-DTL-5015 | Neoprene | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | 14S-5 | Marine, Military | Free Hanging (In-Line), Right Angle | 10.31 mm | 0.406 in | 200 VAC, 250 VDC | Aluminum Alloy | Male Pins, Plug | Copper Alloy | |
Amphenol Industrial Operations MS3108E14S-7S | 13 A | Olive Drab | N | Cable Clamp, Coupling Nut | Environment Resistant | Military | Silver | Unshielded | MIL-DTL-5015 | Neoprene | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | 14S-7 | Marine, Military | Free Hanging (In-Line), Right Angle | 10.31 mm | 0.406 in | Aluminum Alloy | Female Sockets, Plug | Copper Alloy | ||
Amphenol Industrial Operations MS3108E14S-6P | 13 A | Olive Drab | N | Cable Clamp, Coupling Nut | Environment Resistant | Military | 6 | Silver | Unshielded | MIL-DTL-5015 | Neoprene | Metal | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | 14S-6 | Marine, Military | Free Hanging (In-Line), Right Angle | 10.31 mm | 0.406 in | 200 VAC, 250 VDC | Aluminum Alloy | Male Pins, Plug | Copper Alloy |
Amphenol Industrial Operations MS3108E14S-12S |
Description
General part information
MS3108E14 Series
4 Position Circular Connector Plug, Male Pins Solder Cup
