25152 BK005

Active

ALPHA WIRE

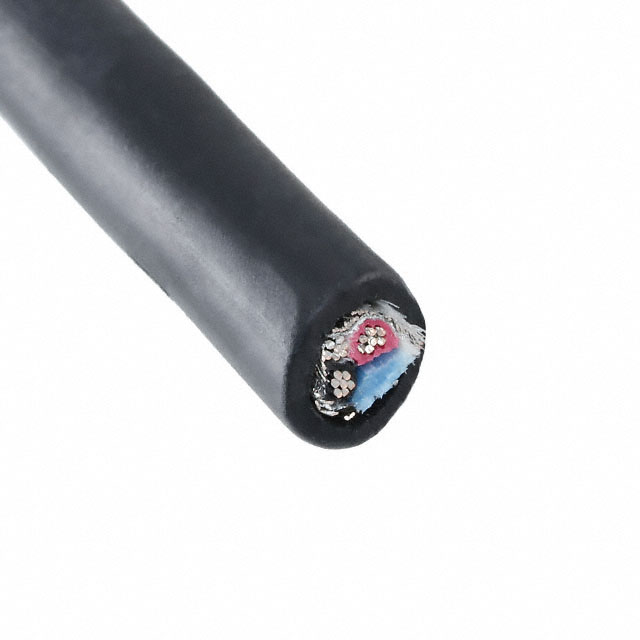

CABLE 2COND 20AWG BLK SHLD 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConductor Color Coding Xtra-Guard Catalog

25152 BK005

Active

ALPHA WIRE

CABLE 2COND 20AWG BLK SHLD 100'

Deep-Dive with AI

DocumentsConductor Color Coding Xtra-Guard Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 414.85

Description

General part information

25152 Series

2 Conductor Multi-Conductor Cable Black 20 AWG Foil, Braid 100.0' (30.5m)

Documents

Technical documentation and resources

Conductor Color Coding

Xtra-Guard Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	25152 BK005	25152 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	28	28
Conductor Strand [custom]	7	7
Features	Rip Cord, Biological Compatibility, Drain Wire	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	5.99 mm	5.99 mm
Jacket (Insulation) Diameter [diameter]	0.236 in	0.236 in
Jacket (Insulation) Material	Polyurethane (PU)	Polyurethane (PU)
Jacket Color	Black	Slate, Red, Black
Length	-	1000 ft
Length	-	304.8 m
Length	-	Enter Number of Feet in Order Quantity
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	2	2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 20668, ISO 10993	UL Style 20668, ISO 10993
Shield Coverage	70 %, 100 %	70 - 100 %
Shield Material	Copper, Tinned, Suprashield®	Copper, Tinned, Suprashield®
Shield Type	Foil, Braid	Foil, Braid
Spool Size	-	1000 ft
Spool Size	-	304.8 m
Voltage	300 V	300 V
Wire Gauge	20 AWG	20 AWG

25152 Series

CABLE 2COND 20AWG SHLD 1000'

Part	Jacket (Insulation) Material	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Conductor Insulation	Length	Length	Shield Type	Features	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Material	Wire Gauge	Voltage	Ratings	Shield Coverage	Spool Size	Spool Size	Length	Length [x]	Length [x]
ALPHA WIRE 25152 SL199	Polyurethane (PU)	Copper, Tinned	28	7	-30 ░C	90 °C	2	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Braid, Foil	Biological Compatibility, Drain Wire, Rip Cord	Multi-Conductor	5.99 mm	0.236 in	Slate	Copper, Tinned, Suprashield®	20 AWG	300 V	ISO 10993, UL Style 20668	70 %, 100 %
ALPHA WIRE 25152 RD199	Polyurethane (PU)	Copper, Tinned	28	7	-30 ░C	90 °C	2	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Braid, Foil	Biological Compatibility, Drain Wire, Rip Cord	Multi-Conductor	5.99 mm	0.236 in	Red	Copper, Tinned, Suprashield®	20 AWG	300 V	ISO 10993, UL Style 20668	70 %, 100 %
ALPHA WIRE 25152 BK199	Polyurethane (PU)	Copper, Tinned	28	7	-30 ░C	90 °C	2	Poly-Vinyl Chloride (PVC)			Braid, Foil	Biological Compatibility, Drain Wire, Rip Cord	Multi-Conductor	5.99 mm	0.236 in	Black	Copper, Tinned, Suprashield®	20 AWG	300 V	ISO 10993, UL Style 20668	70 %, 100 %	1000 ft	304.8 m	Enter Number of Feet in Order Quantity
ALPHA WIRE 25152 BK005	Polyurethane (PU)	Copper, Tinned	28	7	-30 ░C	90 °C	2	Poly-Vinyl Chloride (PVC)			Braid, Foil	Biological Compatibility, Drain Wire, Rip Cord	Multi-Conductor	5.99 mm	0.236 in	Black	Copper, Tinned, Suprashield®	20 AWG	300 V	ISO 10993, UL Style 20668	70 %, 100 %				30.5 m	100 ft
