AWG28-37/G/300

Unknown

Assmann WSW Components

CBL RIBN 37COND 0.05 GRAY 50'

Search across all available documentation for this part.

Unknown

Assmann WSW Components

CBL RIBN 37COND 0.05 GRAY 50'

Technical Specifications

Parameters and characteristics for this part

Part	Ratings	Wire Gauge	Insulation Resistance	Voltage	Shielding	Ribbon Width	Ribbon Width	Length	Length	First Conductor Mark	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket Color	Ribbon Thickness	Ribbon Thickness	Number of Conductors	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]
Assmann WSW Components AWG28-37/G-1/300	UL Style 2651	28 AWG	100 MOhms	300 V	Unshielded	37.01 mm	1.457 "	91.44 m	300 ft	Red	Poly-Vinyl Chloride (PVC)	0.039 in	1 mm	7	36 AWG	Copper Tinned	Gray	0.89 mm	0.035 in	37	Flat Cable	105 ░C	-10 °C
Assmann WSW Components AWG28-37/G/300	UL Style 2651	28 AWG	100 MOhms	300 V	Unshielded	46.99 mm	1.85 in	15.24 m	50 ft	Red	Poly-Vinyl Chloride (PVC)	0.05 in	1.27 mm	7	36 AWG	Copper Tinned	Gray	0.89 mm	0.035 in	37	Flat Cable	105 ░C	-10 °C	10 ft 100 ft	3.05 m 30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

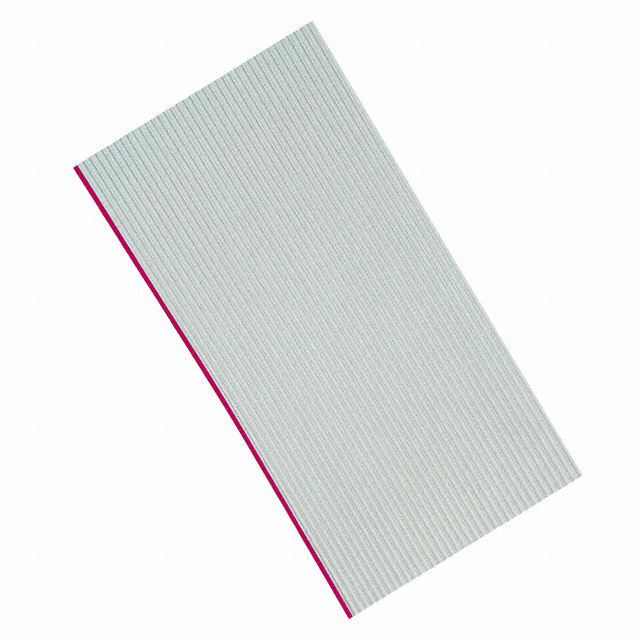

Flat Ribbon Cable Gray 37 Conductors 0.050" (1.27mm) Flat Cable 50.0' (15.24m)
