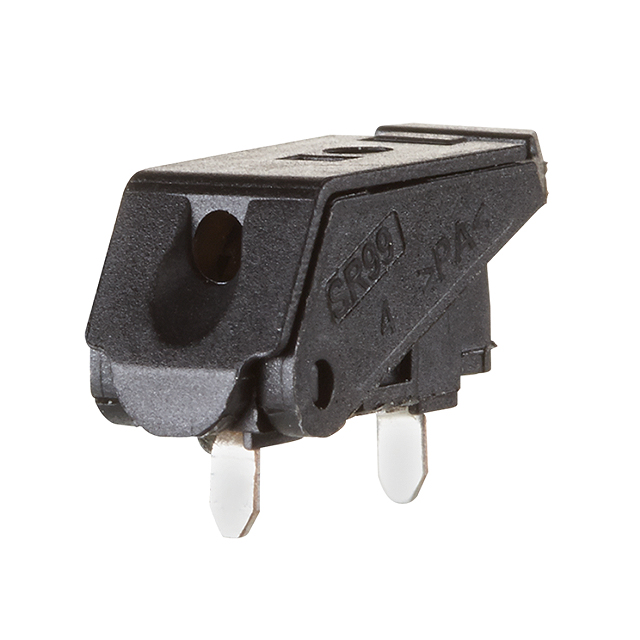

SR99S01VBNN00G7
ActiveMETZ CONNECT USA Inc.
TERM BLOCK 1POS SIDE ENTRY PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR99S01VBNN00G7
ActiveMETZ CONNECT USA Inc.
TERM BLOCK 1POS SIDE ENTRY PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR99S01VBNN00G7 |
|---|---|
| Clamp Material - Plating | Steel |
| Color | Black |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 9 A |
| Features | Push Button Actuated |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Positions Per Level | 1 |
| Voltage | 300 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.26 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.50 | |||
| Tape & Reel (TR) | 750 | $ 0.45 | ||
| 1500 | $ 0.38 | |||
| 3750 | $ 0.34 | |||
| 5250 | $ 0.34 | |||
| 18750 | $ 0.32 | |||
Description
General part information
SR99S01VB Series
1 Position Wire to Board Terminal Block Horizontal with Board Through Hole
