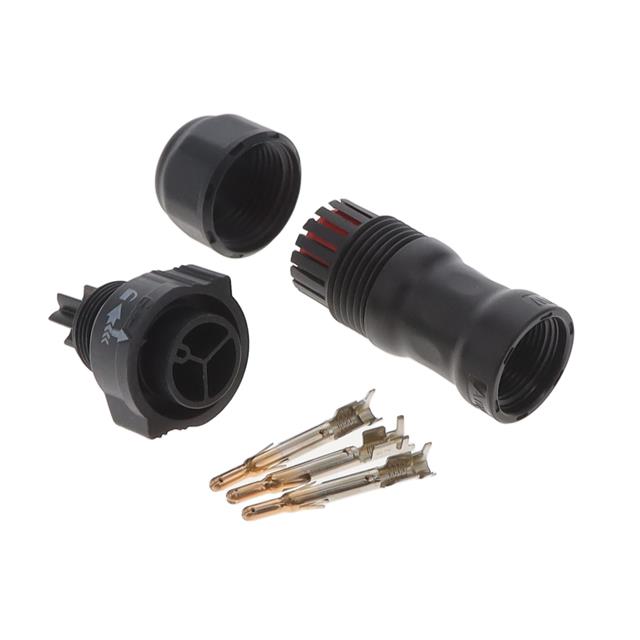

CC-03BFMA-QL8SPP

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, 20A, 03 PINS

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, 20A, 03 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	CC-03BFMA-QL8SPP

Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	6 mm
Cable Opening [Min] [custom]	0.236 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Shielded
Voltage Rating	300 VAC

Part	Shell Material	Orientation	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert	Ingress Protection	Shielding	Primary Material	Fastening Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Features	Connector Type	Number of Positions	Voltage Rating	Mounting Type	Insert Material	Current Rating (Amps)	Color	Contact Finish - Mating	Contact Material	Material Flammability Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Amphenol LTW CC-03BFMA-QL8LPP	Glass Filled Nylon Polyamide (PA)	Keyed	10 mm 12 mm	0.394 in 0.472 in	C	IP68 - Dust Tight Waterproof	Unshielded	Plastic	Push-Pull	Crimp	-40 °C	105 ░C	Backshell	Male Pins Plug	3	300 VAC	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	20 A	Black	Gold	Copper Alloy	UL94 V-0
Amphenol LTW CC-03BFMA-QL8SPP	Glass Filled Nylon Polyamide (PA)	Keyed			C	IP68 - Dust Tight Waterproof	Shielded	Plastic	Push-Pull		-40 °C	105 ░C	Backshell	Male Pins Plug	3	300 VAC	Free Hanging (In-Line)	Nylon Polyamide (PA)	20 A	Black	Gold	Copper Alloy	UL94 V-0	8 mm	6 mm	0.315 in	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Plug, Male Pins Solder Cup
